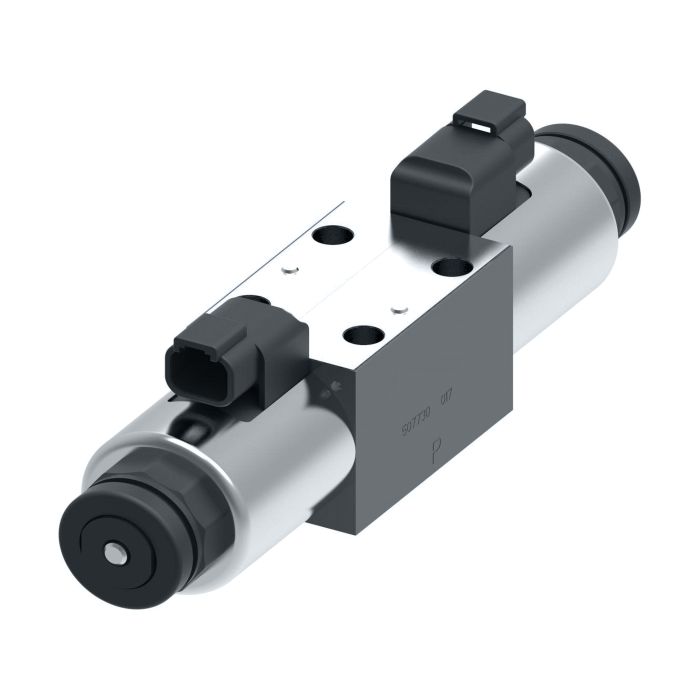

VICKERS DG4V-3M-8C-M-KUP5-G7-65

Ask A Question

Description & Features

The Eaton Vickers DG4V-3M-8C-M-KUP5-G7-65 directional control valve is suitable for applications such as die casting, foundry work, machine tools, marine/offshore, presses, primary metal production, paper mills, test equipment, simulation, and turbine control (wind, steam, and water).

This Vickers directional control valve offers three- or four-way directional control and is easily mountable on industry-standard surfaces. It handles a flow rate of 80 liters per minute and features Buna-N seals.

SKU: 851AN00003A

Supplier Part Number (MPN): 851AN00003A

Specifications

Brand
Vickers by Danfoss
Actuator Type
Solenoid
Design
65 Series
Dimensions
8.74 in L x 1.86 in W x 2.69 in H
Domestic/Import
Domestic
Electrical Connection
Molded Deutsch Connector
Indicator Light
Without Indicator Light
Manual Override
Plain
Media
Petroleum Oil
Number of Stages
1
Performance
High
Seal Material
FKM
Series
DG4V-3 65 Series
Solenoid Energizing ID
Solenoid A at Port A/Solenoid B at Port B
Spool Position Monitor
Without Spool Position Monitor
Spool Type
Spool 8
Spring Arrangement
Spring Centered
Surge Suppressor Damper
Without Surge Suppressor Damper
Valve Mount Type
Subplate/Manifold

Product Questions & Answers (3)

Question by: Larry C on Sep 6, 2025, 12:58 PM
Reckon this valve'll hold up okay in a die casting setup? We run 'em pretty hard.
Answer by: Customer Support on Sep 8, 2025, 6:36 AM
These Vickers directional control valves are commonly used in die casting and foundry applications, so it should be suitable for that type of work.
Question by: Merle K on Dec 3, 2025, 4:05 PM
got a hydraulic setup that needs about 80 lpm, is this valve in the right ballpark for flow
Answer by: Customer Support on Dec 5, 2025, 6:24 AM
For flow expectations, this DG4V-3 65 design directional control valve is listed at 80 litres per minute, so it matches an 80 L/min requirement on paper.
Question by: Sheila B on Oct 20, 2025, 1:11 PM
flow rate on this valve -- is 80 liters per minute the max it'll handle, or is that just a rated operating point?
Answer by: Customer Support on Oct 22, 2025, 11:47 AM
Eighty liters per minute is the rated flow capacity for this valve. Running right at the ceiling of a rated spec for extended periods tends to put more wear on the internals than operating at a comfortable margin below it, so if your system is regularly pushing close to that number, sizing up is worth thinking through before you commit.
