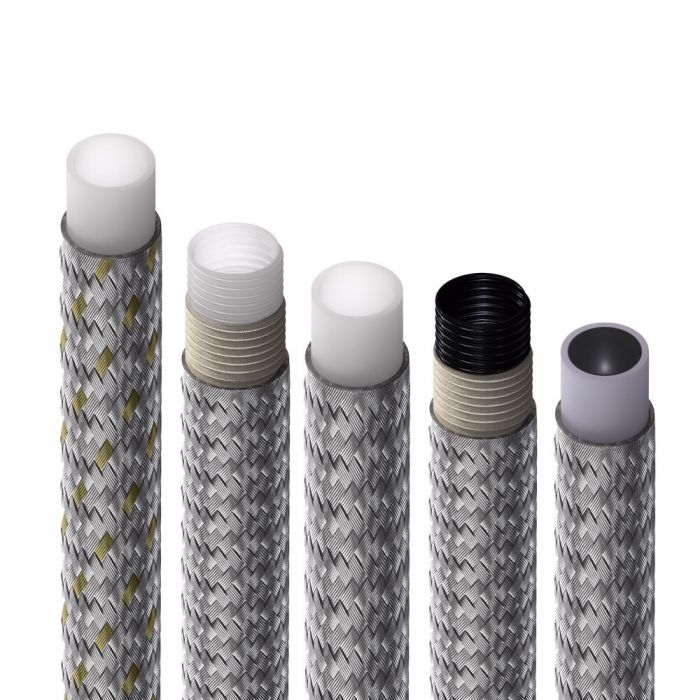

Danfoss / Eaton Teflon Hose Convoluted

Description & Features

Built around a convoluted Teflon (PTFE) inner tube with a single-ply stainless steel braid reinforcement, the Danfoss / Eaton Teflon Hose Convoluted is part of the Everflex 8500 Series and meets SAE 100R14B certification. The convoluted construction supports a tight minimum bend radius of 3.5 inches at -20 dash size, making it well suited for routed installations where space is constrained.

Rated for use from -65°F and across a broad upper temperature range, this hose handles vibration, impulse cycling, and exposure to aggressive media without degradation. Its conductive construction makes it appropriate for applications where flow-induced electrostatic charges are a concern. Compatible with Conv-O-Crimp hose ends, it serves a wide range of industries including chemical processing, pharmaceutical, food processing, steam service, automotive, steel mills, tire manufacturing, and tank truck transfer, among others.

SKU: 8520

Supplier Part Number (MPN): 8520

Specifications

Abrasion Resistance 28	Alternate Part Numbers Alternate Part Number MINO-00015X08235	Application Automotive, platen presses, pharmaceutical, bus and truck, reverse osmosis, hydraulics, chemical processing, steam, air, water, tire manufacturing, electronics, steel mills, food processing, tank truck transfer and any applications where flow induced electrostatic charges can occur.	Certifications SAE 100R14B	Class WEB-ITEM	Color Stainless Steel	Conductivity 30	Construction 1 Ply Braid	Cover Material Stainless Steel	Dash Size -20	Brand Danfoss Power Solutions (II LLC Aeroquip)	Brand Aeroquip	Pack Size 12.00	UOM FT	Features Withstands vibration and impulsing\|Impervious to degradation\|Wide temperature range	ICC Hoses and Flexible Tubes	Language English	Minimum Bend Radius 3.50	Minimum Bend Radius 3.5	Minimum Working Temperature -65	Net Pack Quantity Units FT	NMFC 70	Product Width 1.60	Qualified Hose Fittings Conv-O-Crimp Hose Ends	Reinforcement Material Stainless Steel	Sub Brand Everflex	Supplier Part Number 8520	Tube Material Teflon	Product Weight 3.51 lbs

Product Questions & Answers (1)

Question by: Rod P on Jul 14, 2025, 12:42 PM

What kinda fittings do I need for this hose?

Answer by: Customer Support on Jul 16, 2025, 6:54 AM

Conv-O-Crimp hose ends are the ones specified for use with this Danfoss / Eaton Teflon hose.
