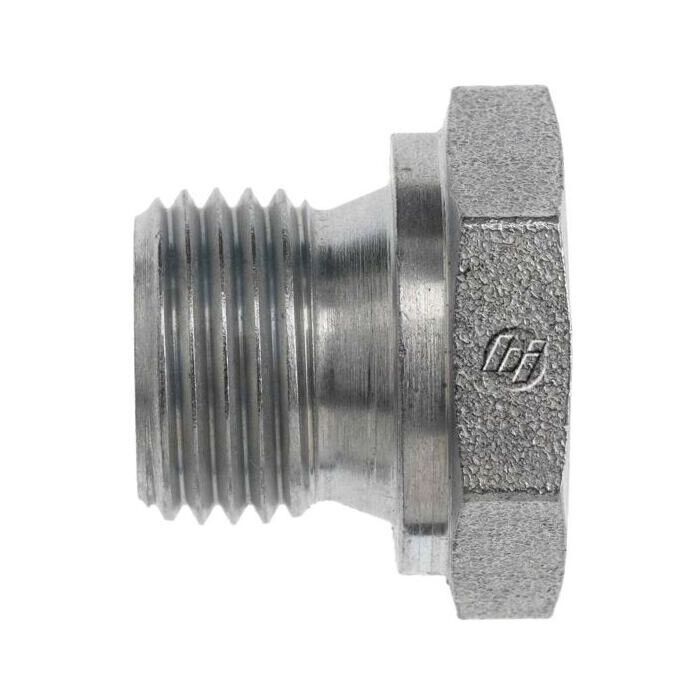

14MM METRIC PLUG 1.5 PITCH

Ask A Question

Description & Features

Designed for sealing unused ports in hydraulic systems, the 14MM Metric Plug 1.5 Pitch is a solid male metric plug manufactured from straight steel. Conforming to ISO 9974 thread specifications with an M14x1.5 thread size, it provides a reliable dead-end closure across a range of hydraulic and industrial circuit applications.

Produced by Brennan Industries, this plug features a hex head drive configuration and a solid construction with no through-passage, making it well suited for blocking off ports during system reconfiguration or where flow paths are not required. The California Prop 65 warning applies to this product.

SKU: 8555-P-14

Supplier Part Number (MPN): 8555-P-14

Specifications

Brand
BRENNAN
Connection Size 1
14 mm
Connection Type
Male Metric
Connection Type 1
Male Metric
Cubic Inch Space L x W x H Dimensions
0.441 cu-in
Dimensions
20 mm L
Finish
Trivalent Zinc-Plated
Fitting Type
Plug
Hex Size
3/4 in
Material
Steel
Material Construction
AISI 1045 Steel
Maximum Operating Pressure
5000 psi
Series
8555-P Series
Thread Size
M14x1.5

Similar Products

Model Number Connection Size 1 Finish Thread Size Hex Size Maximum Operating Pressure Connection Size Price Action
8MM METRIC PLUG 1.0 PITCH

8555-P-08

8 mm

Zinc Trivalent

M8x1

5000 psi

10MM METRIC PLUG 1.0 PITCH

8555-P-10

Trivalent Zinc-Plated

M10x1

0.55 in

5000 psi

12MM METRIC PLUG 1.5 PITCH

8555-P-12

L12

Trivalent Zinc-Plated

M12x1.5

0.67 in

5000 psi

16MM METRIC PLUG 1.5 PITCH

8555-P-16

S16

Trivalent Zinc-Plated

M16x1.5

0.87 in

5000 psi

18MM METRIC PLUG 1.5 PITCH

8555-P-18

18 mm

Trivalent Zinc-Plated

M18x1.5

0.94 in

3500 psi

L18

20MM METRIC PLUG 1.5 PITCH

8555-P-20

20 mm

Trivalent Zinc-Plated

M20x1.5

1.06 in

3500 psi

22MM METRIC PLUG 1.5 PITCH

8555-P-22

L22

Trivalent Zinc-Plated

M22x1.5

1.06 in

3500 psi

L22

Product Questions & Answers (1)

Question by: Hugh R on Jun 24, 2025, 6:07 AM
Reckon this'll fit a standard 14mm port, or do I need to measure somethin' special?
Answer by: Customer Support on Jun 25, 2025, 3:49 PM
This plug conforms to ISO 9974 thread specifications with an M14x1.5 thread size, so it will fit a standard 14mm port that also meets those specifications.
