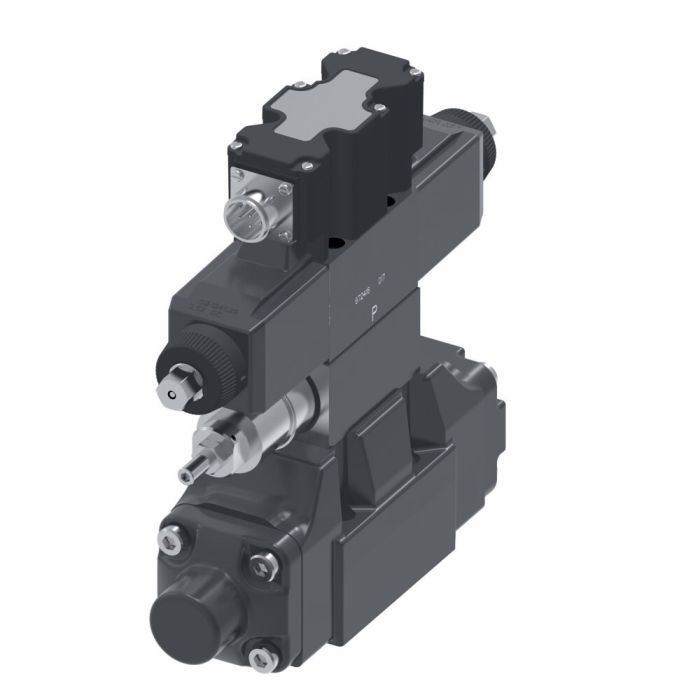

main product photo

KBDG5V-5-33C80N-X-T-H-M1-PE7-H1-11

Ask A Question

Description & Features

This Vickers by Danfoss KBDG5V-5-33C80N-X-T-H-M1-PE7-H1-11 proportional valve with OBE optimizes valve and electronics, which reduces the possibility of selection and installation errors and simplifies valve package installation for faster, lower cost installation.

This valve is suitable for applications such as die casting and foundry, machine tools, marine/offshore, presses, primary metal, paper, test equipment and simulation, and turbine control (wind, steam, water). It features fluorocarbon seals and a flow rate of 80 liters per minute. The product width is 2.77 inches.

SKU: 857AN00050A

Supplier Part Number (MPN): 857AN00050A

Specifications

Brand
Vickers by Danfoss
Actuator Type
Solenoid Controlled, Pilot Operated
Body Material
Iron
Build Orientation
Solenoid B at Port A End of Valve and Solenoid A at Port B End of Valve
Build Type
Spring Centered
Command Input
+/-10 V Control Signal
Design Series
11 Series
Dimensions
10.9 in L x 2.77 in W x 9.2 in H
Domestic/Import
Domestic
Electrical Connection
7-Pin Electrical Plug with Mating Half
Enclosure Type
IP67
Feedback Sensor
Without Feedback Sensor
Language
English
Manual Override
Water-Resistant
Media
Anti-Wear Hydraulic Oil, Non-Alkyl Based Phosphate Ester
Metering
Meter-In/Meter-Out
Nominal Size
#5
Number of Ports/Ways
4-Port
Number of Stages
2
On Board Electronics
With On Board Electronics
Performance
Standard
Pilot Drain
Internal
Pilot Supply
Internal
ProFX Compatible
Without ProFX Compatible
Reducer Module
With Reducer Module
Seal Material
Fluorocarbon
Series
KBDG5V-5 11 Series
Softgoods Material
Fluorocarbon
Spool Type
P Blocked, A and B to Tank
Symmetric Flow
With Symmetric Flow
Valve Mount Type
Subplate

Product Questions & Answers (1)

Question by: Ray S on Oct 3, 2025, 7:35 AM
Can this valve handle the pressure in a typical marine hydraulic system, especially with saltwater exposure?
Answer by: Customer Support on Oct 5, 2025, 8:36 AM
Fluorocarbon seals make it suitable for marine and offshore applications.
