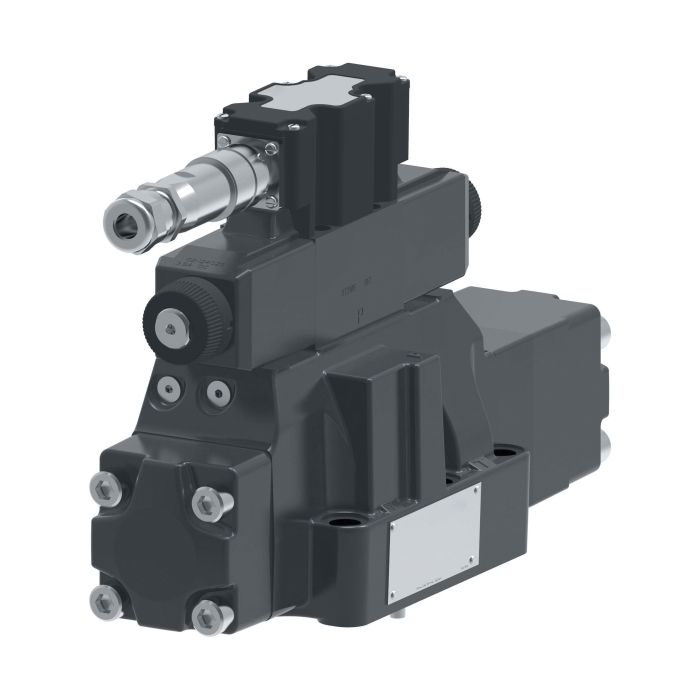

VICKERS KBDG5V-8-2C330N-E-M1-PE7-H1-11

Ask A Question

Description & Features

Designed for demanding industrial applications, the Vickers KBDG5V-8-2C330N-E-M1-PE7-H1-11 is a proportional directional control valve with on-board electronics (OBE), offering integrated valve and electronics in a single, streamlined package. The OBE configuration reduces the complexity of installation and minimizes the risk of selection or wiring errors compared to separately sourced control components.

Rated for flow up to 330 litres per minute and fitted with fluorocarbon seals, this valve is built for reliability across a broad range of industrial environments. Suitable applications include die casting and foundry equipment, machine tools, marine and offshore systems, presses, primary metal and paper processing, test and simulation rigs, and turbine control systems covering wind, steam, and water installations. The optimized valve-and-electronics design supports faster commissioning and a lower overall installed cost.

SKU: 857AN00080A

Supplier Part Number (MPN): 857AN00080A

Specifications

Brand
Vickers by Danfoss
Actuator Type
Solenoid Controlled, Pilot Operated
Build Orientation
Solenoid B at Port A End of Valve and Solenoid A at Port B End of Valve
Build Type
Spring Centered
Command Input
+/-10 V Control Signal
Design Series
11 Series
Dimensions
12.87 in L x 4.6 in W x 8.32 in H
Domestic/Import
Domestic
Electrical Connection
7-Pin Electrical Plug with Mating Half
Feedback Sensor
Without Feedback Sensor
Language
English
Manual Override
Plain
Media
Anti-Wear Hydraulic Oil, Non-Alkyl Based Phosphate Ester
Metering
Meter-In/Meter-Out
Number of Stages
2
On Board Electronics
With On Board Electronics
Performance
Standard
Pilot Drain
External
Pilot Supply
External
ProFX Compatible
Without ProFX Compatible
Reducer Module
Without Reducer Module
Seal Material
Fluorocarbon
Series
KBDG5V-8 11 Series
Spool Type
All Ports Blocked
Symmetric Flow
With Symmetric Flow
Valve Mount Type
Subplate

Product Questions & Answers (1)

Question by: Tommy T on Sep 4, 2025, 12:12 PM
Will this fit on my older Vickers valve setup, or did they change the bolt pattern?
Answer by: Customer Support on Sep 6, 2025, 6:59 AM
This unit comes as a complete proportional directional control valve with on-board electronics (OBE), so it's really designed as a drop-in replacement that simplifies the install and cuts down on wiring headaches. You shouldn't have to worry about redoing any bolt patterns or anything like that.
