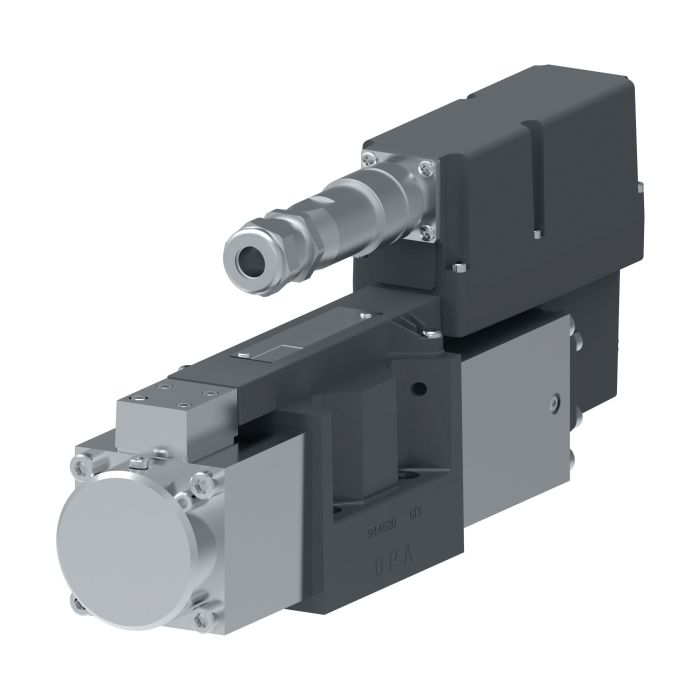

VICKERS KBFDG4V-5-2C70N-Z-M1-PE7-H7-12

Ask A Question

Description & Features

Designed for precision flow control in demanding industrial environments, the Vickers KBFDG4V-5-2C70N-Z-M1-PE7-H7-12 is a proportional directional control valve with on-board electronics (OBE), rated for flow up to 70 litres per minute. Fluorocarbon seals provide reliable compatibility with a wide range of hydraulic fluids.

The integrated electronics package simplifies valve installation by reducing component count and minimizing the risk of selection or wiring errors. This design approach also allows valve and electronic functions to be optimized together rather than configured independently.

Suitable for a broad range of industrial applications, this valve is used in machine tool, press, die casting and foundry, primary metal processing, marine and offshore, test equipment and simulation, and turbine control systems including wind, steam, and water turbines.

SKU: 858AN00001A

Supplier Part Number (MPN): 858AN00001A

Specifications

Brand
Vickers by Danfoss
Actuator Type
Solenoid Controlled
Build Orientation
Solenoid B at Port A End of Valve and Solenoid A at Port B End of Valve
Build Type
Spring Centered
Command Input
+/-10 V Command, +/-10 V Feedback
Design Series
12 Series
Dimensions
12.91 in L x 2.76 in W x 5.31 in H
Domestic/Import
Domestic
Electrical Connection
7-Pin Electrical Plug with Mating Half
Feedback Sensor
With Feedback Sensor
Language
English
Manual Override
Without Manual Override
Media
Anti-Wear Hydraulic Oil, Non-Alkyl Based Phosphate Ester
Metering
Meter-In/Meter-Out
Number of Stages
1
On Board Electronics
With On Board Electronics
Performance
High-Performance
ProFX Compatible
Without ProFX Compatible
Reducer Module
Without Reducer Module
Seal Material
Fluorocarbon
Segment Code
B
Series
KBFDG4V-5 12 Series
Spool Type
All Ports Blocked
Symmetric Flow
With Symmetric Flow
Valve Mount Type
Subplate

Product Questions & Answers (1)

Question by: Roger A on Apr 30, 2025, 7:34 AM
What kind of machines would you typically use this valve on?
Answer by: Customer Support on May 1, 2025, 8:55 AM
It's suitable for a wide range of industrial applications. You'll often find this valve in machine tool, press, die casting and foundry, primary metal processing, marine and offshore, test equipment and simulation, and turbine control systems including wind, steam, and water turbines.
