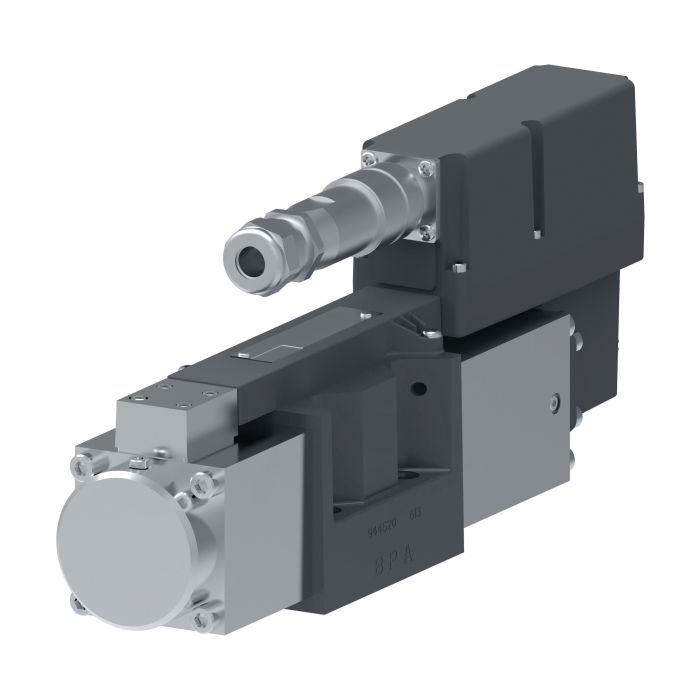

VICKERS KBFDG4V-5-2C50N-Z-M1-PC7-H7-12

Ask A Question

Description & Features

Experience precision and reliability with the Vickers KBFDG4V-5-2C50N-Z-M1-PC7-H7-12 proportional valve, designed for demanding industrial applications such as die casting, marine use, and turbine control. This valve offers a flow rate of 50 liters per minute, ensuring optimal performance in various systems.

Engineered with simplicity in mind, the valve package features a reduced possibility of selection and installation errors, thanks to its optimized design and integrated electronics. The valve's fluorocarbon seals provide robust durability, making it suitable for challenging environments.

SKU: 858AN00005A

Supplier Part Number (MPN): 858AN00005A

Specifications

A Port Flow
13.2 gpm
Actuator Type
Solenoid Controlled
Amperage Rating
2.7 A
B Port Flow
13.2 gpm
Build Orientation
Solenoid B at Port A End of Valve and Solenoid A at Port B End of Valve
Build Type
Spring Centered
Command Input
+/-10 V Command, +/-10 V Feedback
Design Series
12 Series
Dimensions
12.91 in L x 2.76 in W x 5.31 in H
Domestic/Import
Domestic
Electrical Connection
7-Pin Connector without Plug
Feedback Sensor
With Feedback Sensor
Flow Rate
13.2 gpm
Fluid Cleanliness
17/15/12 um
Language
English
Manual Override
Without Manual Override
Media
Anti-Wear Hydraulic Oil, Non-Alkyl Based Phosphate Ester
Metering
Meter-In/Meter-Out
Number of Stages
1
On Board Electronics
With On Board Electronics
Performance
High-Performance
Pressure Drop Rated Flow
72 psi
Pressure Rating
4500 psi
ProFX Compatible
Without ProFX Compatible
Reducer Module
Without Reducer Module
Seal Material
Fluorocarbon
Segment Code
B
Series
KBFDG4V-5 12 Series
Spool Type
All Ports Blocked
Symmetric Flow
With Symmetric Flow
Tank Port Rating
3000 psi
Temperature Rating
-40 to 185 deg F
Valve Mount Type
Subplate
Voltage Rating
24 VDC

Product Questions & Answers (1)

Question by: Larry R on May 7, 2025, 12:06 PM
If I'm usin' this in a marine environment, should I be worried about corrosion or anything like that?
Answer by: Customer Support on May 8, 2025, 3:14 PM
Fluorocarbon seals give it good durability, even when things get salty out on the water.
