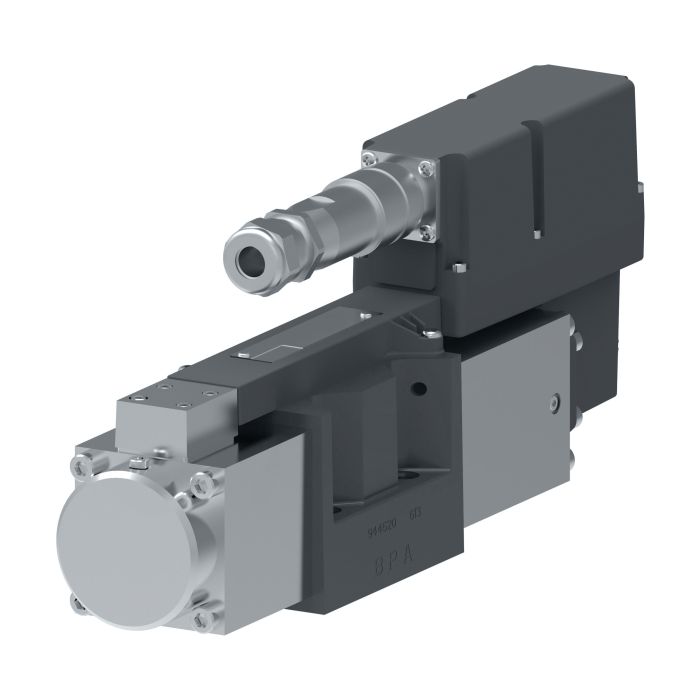

main product photo

VICKERS KBFDG4V-5-33C50N-Z-M1-PE7-H7-12

Ask A Question

Description & Features

Designed for precision flow control in demanding industrial environments, the Vickers KBFDG4V-5-33C50N-Z-M1-PE7-H7-12 is a proportional directional control valve with on-board electronics (OBE), rated at 50 litres per minute. Fluorocarbon seals make it well suited for use with a range of hydraulic fluids and higher-temperature applications.

This valve integrates the electronic driver directly into the valve body, reducing the number of components required for installation and minimizing the risk of wiring or selection errors. The result is a more compact, streamlined valve package compared to configurations with separate amplifier cards.

Typical applications include die casting and foundry equipment, machine tools, marine and offshore systems, press machinery, primary metal and paper processing, test and simulation equipment, and turbine control systems for wind, steam, and water turbines.

SKU: 858AN00007A

Supplier Part Number (MPN): 858AN00007A

Alternate Part Numbers: KBFDG4V533C50NZM1PE7H712

Specifications

Brand
Vickers by Danfoss
Actuator Type
Solenoid Controlled
Build Orientation
Solenoid B at Port A End of Valve and Solenoid A at Port B End of Valve
Build Type
Spring Centered
Command Input
+/-10 V Command, +/-10 V Feedback
Design Series
12 Series
Dimensions
12.91 in L x 2.76 in W x 5.31 in H
Domestic/Import
Domestic
Electrical Connection
7-Pin Electrical Plug with Mating Half
Feedback Sensor
With Feedback Sensor
Language
English
Manual Override
Without Manual Override
Media
Anti-Wear Hydraulic Oil, Non-Alkyl Based Phosphate Ester
Metering
Meter-In/Meter-Out
Number of Stages
1
On Board Electronics
With On Board Electronics
Performance
High-Performance
ProFX Compatible
Without ProFX Compatible
Reducer Module
Without Reducer Module
Seal Material
Fluorocarbon
Segment Code
B
Series
KBFDG4V-5 12 Series
Spool Type
P Port Blocked, A, B, T Connected
Symmetric Flow
With Symmetric Flow
Valve Mount Type
Subplate

Product Questions & Answers (1)

Question by: Shane T on Dec 25, 2025, 6:08 PM
Reckon this valve could handle the kinda pressures we see in our die casting operation?
Answer by: Customer Support on Dec 27, 2025, 11:03 AM
Designed for demanding industrial uses like die casting and foundry equipment, this Vickers valve is well-suited for precision flow control.
