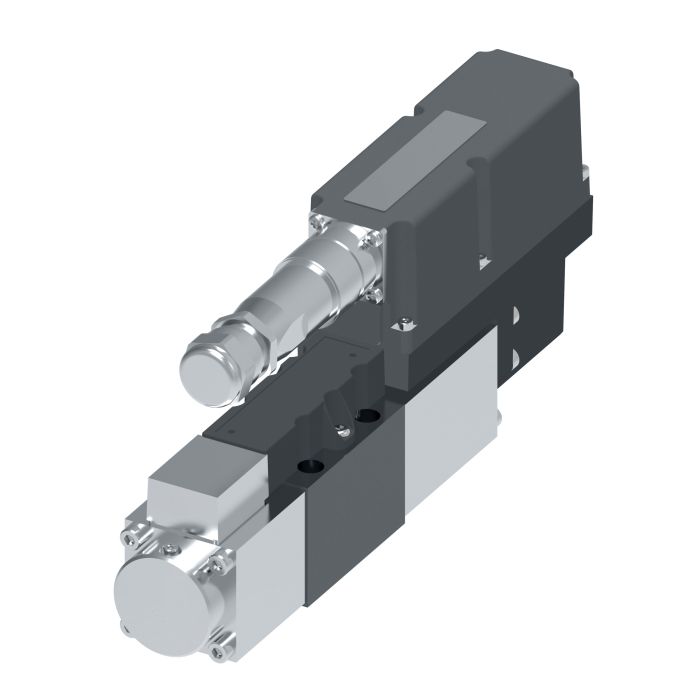

KBFDG4V-3-2C20N10-Z-M1-PE7-H7-12

Ask A Question

Description & Features

This Vickers KBFDG4V-3-2C20N10-Z-M1-PE7-H7-12 valve is designed for proportional control in demanding applications such as die casting, foundry work, machine tools, marine and offshore equipment, presses, primary metal production, paper manufacturing, and test equipment. It is also suitable for turbine control in wind, steam, and water power systems.

This Vickers valve features optimized valve and electronics for simpler, faster, and lower cost valve package installation. This design reduces the possibility of selection and installation errors. With a flow rate of 20 liters per minute and fluorocarbon seals, this Vickers sub brand valve ensures reliable performance. It measures 1.89 inches in width.

SKU: 858AN00090A

Supplier Part Number (MPN): 858AN00090A

Specifications

Brand
Vickers by Danfoss
Actuator Type
Solenoid Controlled
Body Material
Iron
Build Orientation
Solenoid B at Port A End of Valve and Solenoid A at Port B End of Valve
Build Type
Spring Centered
Command Input
+/-10 V Command, +/-10 V Feedback
Design Series
12 Series
Dimensions
10.47 in L x 1.89 in W x 4.57 in H
Domestic/Import
Domestic
Electrical Connection
7-Pin Electrical Plug with Mating Half
Enclosure Type
IP67
Feedback Sensor
With Feedback Sensor
Flow Rate
2.64 gpm, 5.28 gpm
Language
English
Manual Override
Without Manual Override
Media
Anti-Wear Hydraulic Oil, Non-Alkyl Based Phosphate Ester
Metering
Meter-In/Meter-Out
Nominal Size
#03
Number of Ports/Ways
4-Port
Number of Stages
1
On Board Electronics
With On Board Electronics
Performance
High-Performance
ProFX Compatible
Without ProFX Compatible
Reducer Module
Without Reducer Module
Seal Material
Fluorocarbon
Series
KBFDG4V-3 12 Series
Softgoods Material
Fluorocarbon
Spool Type
All Ports Blocked
Symmetric Flow
Without Symmetric Flow
Valve Mount Type
Subplate

Product Questions & Answers (1)

Question by: Harold C on Aug 31, 2025, 7:59 AM
Can this valve handle nasty fluids, or am I gonna need something different?
Answer by: Customer Support on Sep 2, 2025, 6:08 AM
Fluorocarbon seals give this Vickers valve good resistance to a range of fluids, so it should hold up well.
