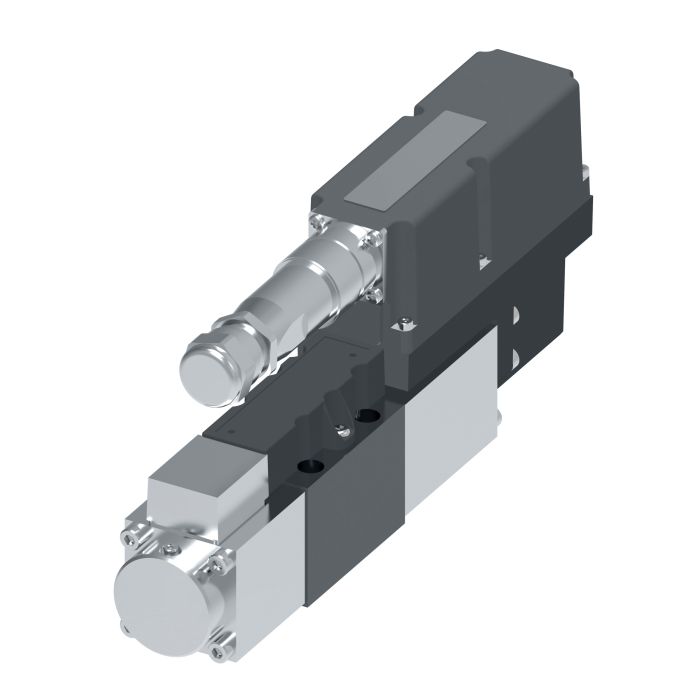

main product photo

VICKERS-KBFDG4V-3-5C30N-Z-M1-PE7-H7-12

Ask A Question

Description & Features

Designed for precision flow control across demanding industrial environments, the VICKERS-KBFDG4V-3-5C30N-Z-M1-PE7-H7-12 is a proportional directional control valve from Vickers by Danfoss/Eaton, featuring an on-board electronics (OBE) package that integrates the valve and its control electronics into a single unit. With a rated flow of 30 litres per minute and fluorocarbon seals, it is built for reliable performance in hydraulic circuits where consistent, proportional control is essential.

The integrated electronics design reduces the complexity of valve package installation, minimizes the likelihood of selection and configuration errors, and allows for optimized matching between the valve body and its drive electronics. Suitable for a broad range of industrial applications, including die casting and foundry equipment, machine tools, press systems, primary metal and paper processing, marine and offshore installations, test and simulation rigs, and turbine control systems, this valve is well suited wherever proportional hydraulic control is required in a compact, pre-matched package.

SKU: 858AN00092A

Supplier Part Number (MPN): 858AN00092A

Specifications

Brand
Vickers by Danfoss
Actuator Type
Solenoid Controlled
Build Orientation
Solenoid B at Port A End of Valve and Solenoid A at Port B End of Valve
Build Type
Spring Centered
Command Input
+/-10 V Command, +/-10 V Feedback
Design Series
12 Series
Dimensions
10.47 in L x 1.89 in W x 4.57 in H
Domestic/Import
Domestic
Electrical Connection
7-Pin Electrical Plug with Mating Half
Feedback Sensor
With Feedback Sensor
Language
English
Manual Override
Without Manual Override
Media
Anti-Wear Hydraulic Oil, Non-Alkyl Based Phosphate Ester
Metering
Meter-In/Meter-Out
Number of Stages
1
On Board Electronics
With On Board Electronics
Performance
High-Performance
ProFX Compatible
Without ProFX Compatible
Reducer Module
Without Reducer Module
Seal Material
Fluorocarbon
Segment Code
C
Series
KBFDG4V-3 12 Series
Spool Type
Zero LAP, Closed Centre (All Ports)
Symmetric Flow
With Symmetric Flow
Valve Mount Type
Subplate

Product Questions & Answers (1)

Question by: Hubert W on Sep 8, 2025, 5:43 PM
What kind of seal does this valve use? Gotta make sure it'll hold up to the fluid we're runnin'.
Answer by: Customer Support on Sep 10, 2025, 5:39 PM
It uses fluorocarbon seals, which offer good resistance to a range of hydraulic fluids.
