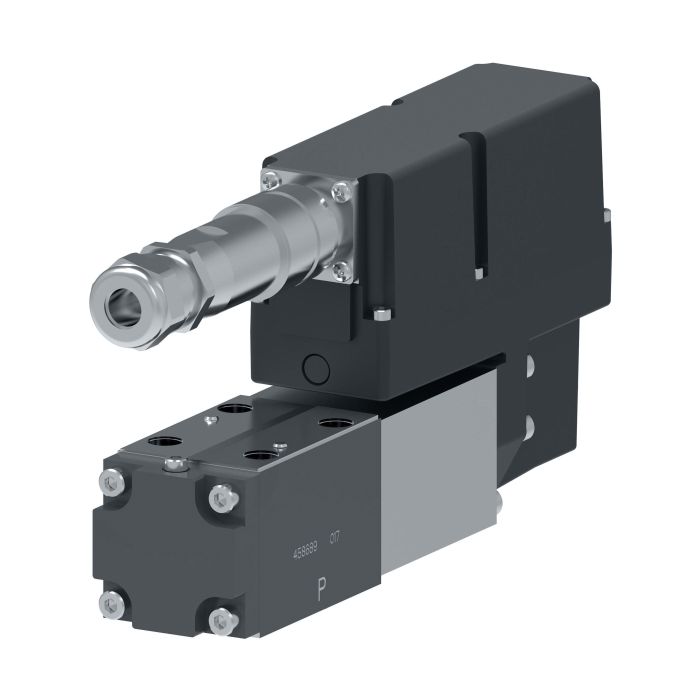

VICKERS KBSDG4V396L12NM1PE7H712

Ask A Question

Description & Features

Designed for demanding industrial applications, the Vickers KBSDG4V396L12NM1PE7H712 is a proportional directional control valve with on-board electronics (OBE), rated for a flow rate of 12 litres per minute. The integrated electronics package simplifies installation by reducing component count and minimizing the potential for selection or wiring errors, while also allowing valve and control functions to be optimized as a single unit.

Fluorocarbon seals make this valve suitable for use with a wide range of hydraulic fluids in high-temperature or chemically demanding environments. Typical applications include machine tools, press equipment, die casting and foundry systems, primary metal and paper processing, marine and offshore installations, turbine control, and test and simulation equipment. The KBSDG4V-3 series design reflects a focus on practical installation efficiency without sacrificing precise proportional control.

SKU: 859AN00011A

Supplier Part Number (MPN): 859AN00011A

Specifications

Brand
Vickers by Danfoss
Actuator Type
Solenoid Controlled
Build Orientation
Solenoid at B Port End
Command Input
+/-10 V Command, +/-10 V Feedback
Design Series
12 Series
Dimensions
8.93 in L x 1.89 in W x 4.57 in H
Domestic/Import
Domestic
Electrical Connection
7-Pin Electrical Plug with Mating Half
Feedback Sensor
With Feedback Sensor
Language
English
Media
Anti-Wear Hydraulic Oil, Non-Alkyl Based Phosphate Ester
Number of Stages
1
On Board Electronics
With On Board Electronics
Performance
Servo
ProFX Compatible
Without ProFX Compatible
Reducer Module
Without Reducer Module
Reverse Flow Check
Without Reverse Flow Check
Seal Material
FKM
Series
KBSDG4V-3 12 Series
Spool Type
P Blocked, A and B to Tank
Valve Mount Type
Subplate

Product Questions & Answers (1)

Question by: Chad K on Aug 31, 2025, 10:12 AM
Is this valve something I can use on a die casting machine?
Answer by: Customer Support on Sep 1, 2025, 1:18 PM
Application data confirms that this Vickers valve is indeed suitable for die casting and foundry systems, among others. It's also used in machine tools, presses, and even marine or offshore setups.
