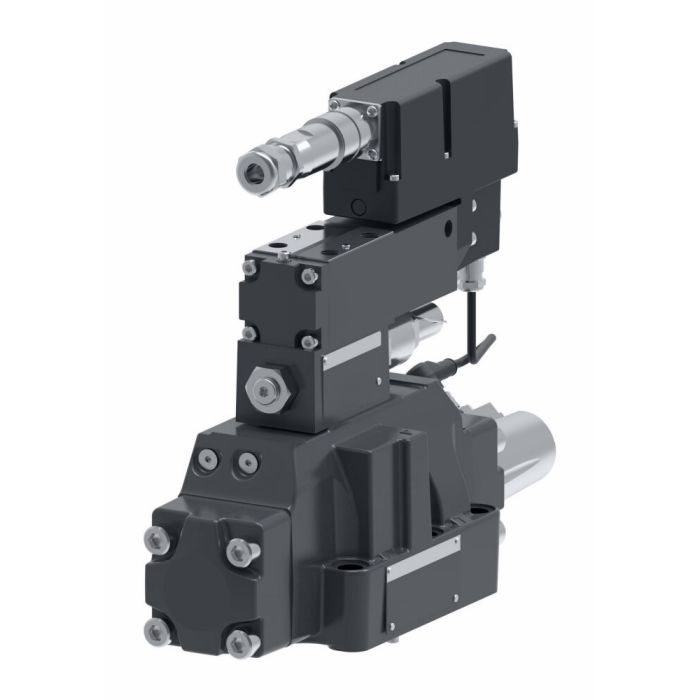

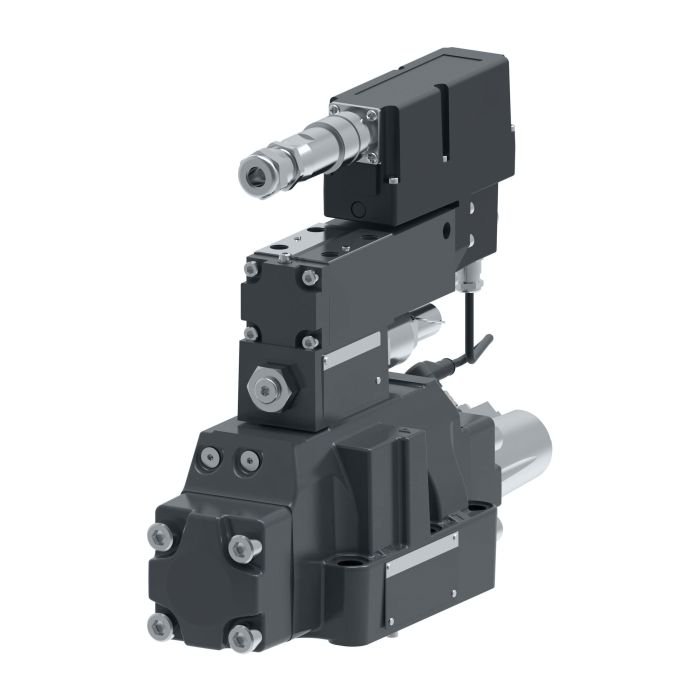

main product photo

VICKERS-KBHDG5V-8-2C375N-X-M1-PE7-H4-12

Ask A Question

Description & Features

Designed for high-flow proportional control, this Vickers by Danfoss proportional directional valve delivers a rated flow of 375 litres per minute with fluorocarbon seals suited to demanding fluid compatibility requirements. The integrated on-board electronics (OBE) eliminate the need for a separate amplifier card, reducing installation complexity and the risk of component selection errors.

The VICKERS-KBHDG5V-8-2C375N-X-M1-PE7-H4-12 is a Size 8 proportional valve built for precision flow and directional control across a broad range of industrial applications, including press machinery, machine tools, die casting and foundry equipment, marine and offshore systems, turbine control, and test and simulation equipment.

Fluorocarbon seals support compatibility with a wide range of hydraulic fluids. The valve's integrated electronics package simplifies wiring and reduces installation time compared to conventional external amplifier configurations.

SKU: 864AN00001A

Supplier Part Number (MPN): 864AN00001A

Specifications

Brand
Vickers by Danfoss
Actuator Type
Solenoid Controlled, Pilot Operated
Build Orientation
Solenoid at B Port End
Build Type
Spring Centered
Command Input
+/-10 V Command, +/-10 V Feedback
Design Series
12 Series
Dimensions
19.96 in L x 7.75 in W x 12.63 in H
Domestic/Import
Domestic
Electrical Connection
7-Pin Electrical Plug with Mating Half
Feedback Sensor
With Feedback Sensor
Language
English
Media
Anti-Wear Hydraulic Oil, Non-Alkyl Based Phosphate Ester
Metering
Meter-In/Meter-Out
Number of Stages
2
On Board Electronics
With On Board Electronics
Performance
Servo
Pilot Drain
External
Pilot Supply
Internal
ProFX Compatible
Without ProFX Compatible
Reducer Module
With Reducer Module
Reverse Flow Check
Without Reverse Flow Check
Seal Material
FKM
Segment Code
A
Series
KBHDG5V-8 12 Series
Spool Type
All Ports Blocked
Symmetric Flow
With Symmetric Flow
Valve Mount Type
Subplate

Product Questions & Answers (1)

Question by: Phil A on Jul 13, 2025, 7:45 AM
Just want to double-check, this thing uses fluorocarbon seals, right?
Answer by: Customer Support on Jul 15, 2025, 6:02 AM
That's correct. Fluorocarbon seals make it compatible with a wider range of hydraulic fluids.
