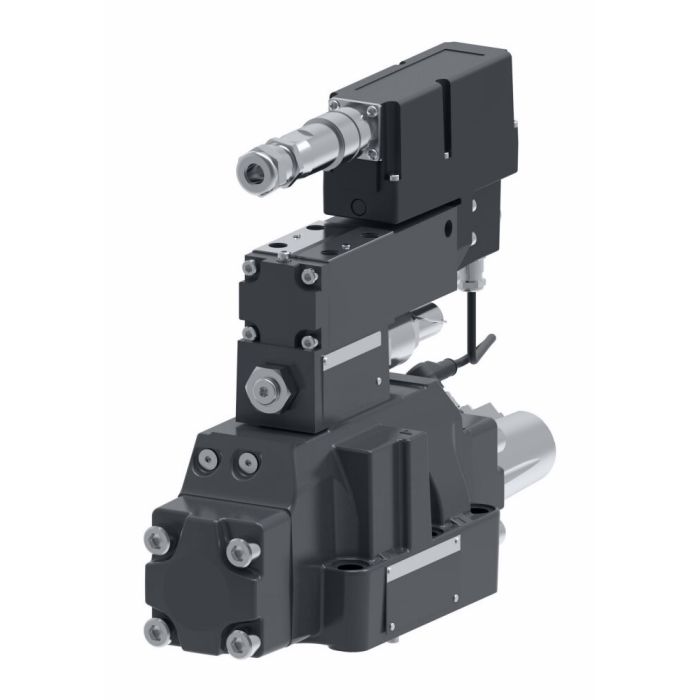

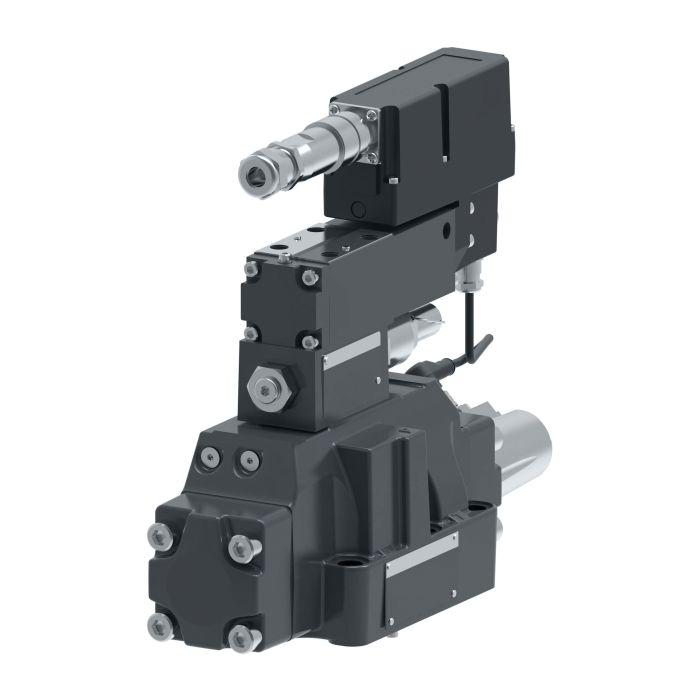

VICKERS-KBHDG5V-8-2C375N250-X-M1-PE7-H4-

Ask A Question

Description & Features

Designed for high-flow proportional control applications, the VICKERS-KBHDG5V-8-2C375N250-X-M1-PE7-H4- is a size 8 proportional directional valve rated at 375 litres per minute. Built under the Vickers brand by Danfoss/Eaton, it features an on-board electronics (OBE) package that integrates the valve and control electronics into a single unit, reducing the complexity of installation and minimising the risk of selection or wiring errors.

Fluorocarbon seals make this valve suitable for use with a wide range of hydraulic fluids in demanding industrial environments. Typical applications span die casting and foundry equipment, machine tools, marine and offshore systems, presses, primary metal and paper processing, test and simulation equipment, and turbine control, including wind, steam, and water turbine installations. The combined valve-and-electronics package supports faster commissioning and a more compact installation footprint compared to separate component configurations.

SKU: 864AN00027A

Supplier Part Number (MPN): 864AN00027A

Specifications

Brand
Vickers by Danfoss
Actuator Type
Solenoid Controlled, Pilot Operated
Build Orientation
Solenoid at B Port End
Build Type
Spring Centered
Command Input
+/-10 V Command, +/-10 V Feedback
Design Series
12 Series
Dimensions
19.96 in L x 7.75 in W x 12.63 in H
Domestic/Import
Domestic
Electrical Connection
7-Pin Electrical Plug with Mating Half
Feedback Sensor
With Feedback Sensor
Flow Rate
66 gpm, 99 gpm
Language
English
Media
Anti-Wear Hydraulic Oil, Non-Alkyl Based Phosphate Ester
Metering
Meter-In/Meter-Out
Number of Stages
2
On Board Electronics
With On Board Electronics
Performance
Servo
Pilot Drain
External
Pilot Supply
Internal
ProFX Compatible
Without ProFX Compatible
Reducer Module
With Reducer Module
Reverse Flow Check
Without Reverse Flow Check
Seal Material
FKM
Series
KBHDG5V-8 12 Series
Spool Type
All Ports Blocked
Symmetric Flow
Without Symmetric Flow
Valve Mount Type
Subplate

Product Questions & Answers (1)

Question by: Clint P on Nov 23, 2025, 12:30 PM
How hard is this thing to hook up? I ain't no electrician.
Answer by: Customer Support on Nov 24, 2025, 1:38 PM
Simpler valve package installation is one of the key advantages. The onboard electronics package combines the valve and control electronics, which reduces complexity and the risk of wiring errors.
