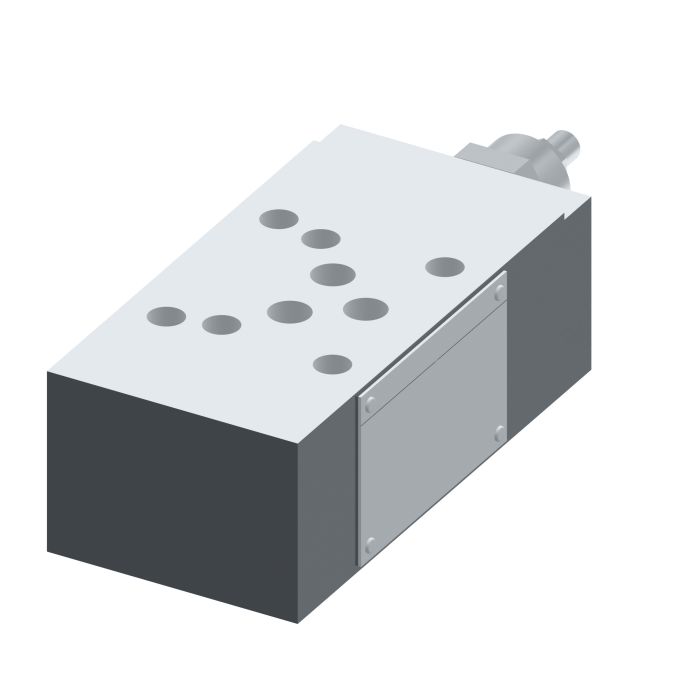

VICKERS DGMC 5 AT GW S 30

Ask A Question

Description & Features

This Vickers DGMC 5 AT GW S 30 systemstak valve is part of the DGMC-5 30 design series. It offers a flow rate of 120 liters per minute. Constructed with Buna-N seals, this valve is designed to eliminate external leakage, reduce installation costs, and boost resistance to contamination.

Common applications include die casting and foundry, machine tools, marine/offshore, presses, primary metal production, paper mills, test equipment and simulation, and turbine control (wind, steam, and water).

SKU: 867317

Supplier Part Number (MPN): 867317

Specifications

Actuator Type
Pressure Operated
Adjustment Type
Screw and Locknut
Body Material
Iron
Connection Type
SAE
Design
30 Series
Dimensions
7.39 in L x 2.82 in W x 1.97 in H
End Type
SAE
External Drain
Without External Drain
Gauge Port Thread
SAE 4 O-ring Boss Port
Media
Petroleum Oil
Nominal Size
#5
Number of Stages
1
Performance
Standard
Port Drained Into
Tank Port
Port Operated Upon
A Cylinder Port
Remote Control Port
Without Remote Control Port
Seal Material
FKM
Series
DGMC-5 Series
Valve Mount Type
Subplate/Manifold

Product Questions & Answers (1)

Sign In Hover me Please sign in to submit a question
Question by: Hank R on May 4, 2025, 7:49 PM
Can this valve handle hydraulic fluid with some contamination, or do I need to be real careful about filtration?
Answer by: Customer Support on May 6, 2025, 7:12 AM
Built with Buna-N seals, this valve is designed to boost resistance to contamination. You'll still want to maintain your system, but it offers some extra protection.
