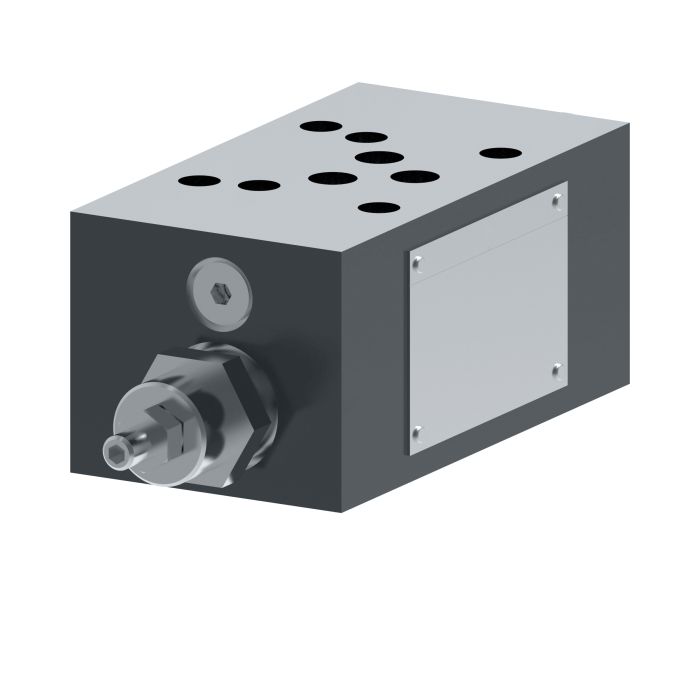

Vickers DGMC2 5 AT GW BT GW

Ask A Question

Description & Features

Designed for diverse industrial applications, the Vickers DGMC2 5 AT GW BT GW is a directional control valve that excels in environments such as die casting, marine use, and turbine control. With a robust flow rate of 120 liters per minute, this valve is engineered to enhance efficiency and reliability. Its construction includes Buna-N seal material, ensuring durability and resistance to contamination. The valve's design significantly reduces installation costs by eliminating external leakage, making it an ideal choice for heavy-duty applications.

As part of the SystemStak series, the Vickers DGMC2 5 AT GW BT GW is suitable for use in machine tools, press systems, and primary metal industries. Its compatibility with various industrial settings underscores its versatility and reliability. Manufactured by Vickers, a trusted name in hydraulic solutions, this valve offers robust performance and seamless integration into existing systems.

SKU: 867321

Supplier Part Number (MPN): 867321

Alternate Part Numbers: DGMC25ATGWBTGWS30

Specifications

Actuator Type
Pressure Operated
Adjustment Type
Screw and Locknut
Body Material
Iron
Connection Type
SAE
Design
30 Series
Dimensions
9.84 in L x 2.82 in W x 1.97 in H
End Type
SAE
External Drain
Without External Drain
Function 1 Pressure Adjustment
60 to 4500 psi
Function 2 Pressure Adjustment
60 to 4500 psi
Gauge Port Thread
SAE 4 O-ring Boss Port
Media
Petroleum Oil
Nominal Size
#5
Number of Stages
2
P Port Acted Upon
B Cylinder Port
Performance
Standard
Port Drained Into
Tank Port
Port Drained Into Dual
T Port
Port Operated Upon
A Cylinder Port
Remote Control Port
Without Remote Control Port
Seal Material
FKM
Series
DGMC-2 Series
Valve Mount Type
Subplate/Manifold

Product Questions & Answers (1)

Sign In Hover me Please sign in to submit a question
Question by: Warren C on Oct 13, 2025, 3:35 PM
Reckon this valve could handle gettin' splashed with saltwater on a regular basis?
Answer by: Customer Support on Oct 15, 2025, 8:08 AM
Designed for environments including marine applications, this directional control valve is constructed with Buna-N seal material, which offers enhanced durability and resistance to contamination, helping it withstand the demands of marine use.
