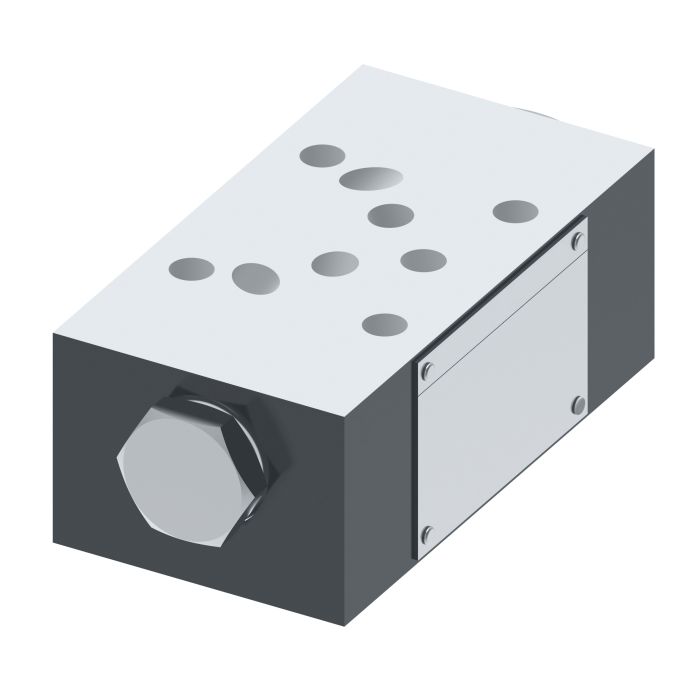

VICKERS DGMPC 5 ABK 30

Ask A Question

Description & Features

Designed for machine tool and general industrial hydraulic circuits, the Vickers DGMPC-5-ABK-30 is a SystemStak directional control valve rated for flow up to 120 litres per minute. Its stacked valve configuration reduces installation complexity by eliminating the need for external interconnecting lines, which also removes potential external leakage paths and strengthens resistance to fluid contamination.

Buna-N seals are fitted as standard, making this valve suitable for use with common petroleum-based hydraulic fluids. As part of the Eaton Vickers SystemStak range, it is engineered to integrate directly with compatible manifold assemblies in multi-valve configurations across a broad range of industrial hydraulic systems.

SKU: 867339

Supplier Part Number (MPN): 867339

Alternate Part Numbers: C1KE27, DGMPC5ABK30

Specifications

Actuator Type
Pressure Operated
Body Material
Iron
Check Location
Line A
Design
30 Series
Dimensions
5.82 in L x 2.74 in W x 1.97 in H
Domestic/Import
Domestic
Function
Check in Line A, Pilot Operated From Line B
Language
English
Material Standard
ANSI B93.7M-D03
Media
Petroleum Oil
Mounting Type
Manifold, Subplate
Nominal Size
#5
Performance
Standard-Performance
Port Operated Upon
A Cylinder Port
Seal Material
FKM
Series
DGMPC-5 Series

Product Questions & Answers (1)

Sign In Hover me Please sign in to submit a question
Question by: Chad J on Jan 6, 2026, 4:03 PM
flow rate on this valve -- is 120 liters per minute the max it'll handle or just a rated continuous figure?
Answer by: Customer Support on Jan 8, 2026, 7:08 AM
120 litres per minute is the rated flow for this valve. That's the figure Eaton Vickers publishes for the DGMPC-5 ABK 30, and it reflects what the valve is built to move under normal operating conditions. Running right at the rated limit on a continuous basis puts more wear on the seals and internals over time, so most folks leave a little headroom below that number if the application allows it.
