VICKERS DGMPC 5 BAK 30

Description & Features

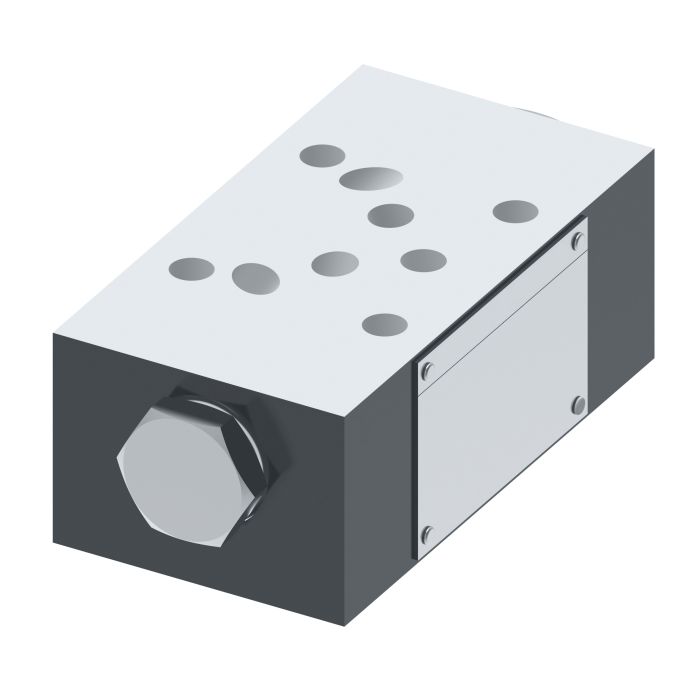

The Eaton Vickers DGMPC 5 BAK 30 is a directional control valve designed for machine tool and various industrial applications. This SystemStak valve helps reduce installation costs and eliminates external leakage, boosting resistance to contamination.

Featuring a Buna-N seal material and a flow rate of 120 liters per minute, this Vickers sub-brand valve ensures reliable performance. Its width measures 2.74 inches.

SKU: 867340

Supplier Part Number (MPN): 867340

Alternate Part Numbers: C1KE28, DGMPC5BAK30

Specifications

Actuator Type Pressure Operated	Body Material Iron	Check Location Line B	Design 30 Series	Dimensions 5.82 in L x 2.74 in W x 1.97 in H	Domestic/Import Domestic	Function Check in Line B, Pilot Operated From Line A	Language English	Material Standard ANSI B93.7M-D03	Media Petroleum Oil	Mounting Type Manifold, Subplate	Nominal Size #5	Performance Standard-Performance	Port Operated Upon B Cylinder Port	Seal Material FKM	Series DGMPC-5 Series

Product Questions & Answers (1)

Question by: Larry R on Jan 18, 2026, 7:12 PM

flow rate on this valve is 120 lpm, but does that hold up in actual machine tool setups or is that more of a peak number?

Answer by: Customer Support on Jan 20, 2026, 8:20 AM

For machine tool applications, 120 litres per minute is the rated flow capacity for this valve. SystemStak valves like the DGMPC-5 are built around stacked manifold configurations, which generally keep pressure drops more predictable than plumbed alternatives. Whether your system runs close to that ceiling depends on your circuit design, but the 120 lpm figure is what this valve is rated to handle.
