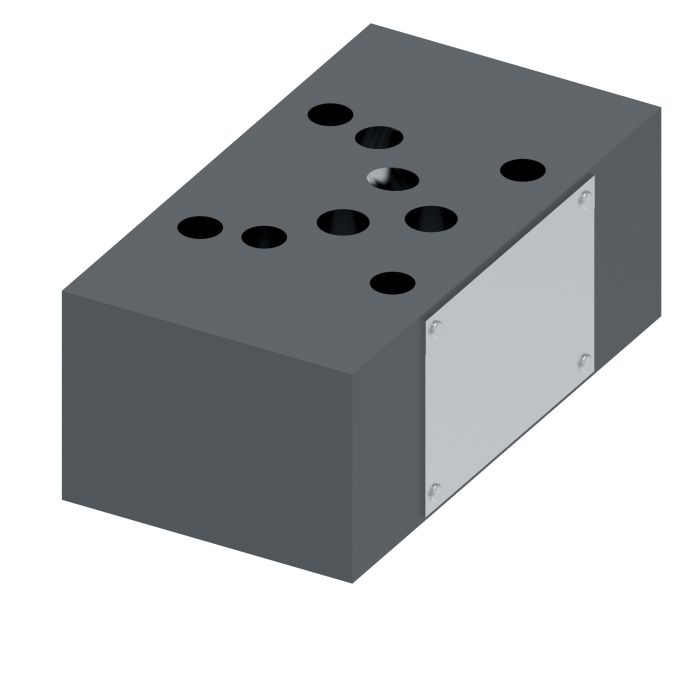

VICKERS DGMDC 5 Y PK 30

Description & Features

Designed for demanding industrial hydraulic circuits, the Vickers DGMDC 5 Y PK 30 is a SystemStak directional control valve from Eaton Vickers, suited for use in machine tool, press, primary metal, marine/offshore, die casting and foundry, turbine control, and test and simulation environments.

As part of the SystemStak valve family, this unit supports a modular, stacked mounting arrangement that reduces installation costs by eliminating the need for individual manifold blocks and minimizes the risk of external leakage between valve stations. The design also provides boosted resistance to contamination, a key consideration in harsh or demanding circuits. Flow capacity is rated at 120 litres per minute, and the valve uses Buna-N seals throughout.

SKU: 867341

Supplier Part Number (MPN): 867341

Alternate Part Numbers: DGMDC5YPK30

Specifications

Brand Vickers by Danfoss	Actuator Type Pressure Operated	Body Material Iron	Check Location Line P	Design Series 30 Series	Dimensions 5.43 in L x 2.82 in W x 1.97 in H	Direction of Flow Towards Actuator	Domestic/Import Domestic	igs Only With igs	Language English	Material Standard ANSI B93.7M-D03	Media Petroleum Oil	Mounting Type Manifold, Subplate	Nominal Size #5	Performance Standard	Port Operated Upon Pressure Port	Seal Material FKM	Segment Code A	Series DGMDC-5 Series	Valve Mount Type Subplate/Manifold

Product Questions & Answers (2)

Question by: Norm B on Aug 16, 2025, 11:32 AM

flow rate on this valve is listed at 120 liters per minute -- is that enough for press or die casting applications or would it be undersized for that kind of work?

Answer by: Customer Support on Aug 17, 2025, 7:44 PM

For press and die casting setups, 120 liters per minute is a solid working capacity and falls right in line with what those applications typically demand. The DGMDC-5 is specifically listed for die casting and foundry use as well as press applications, so that flow rating was matched to those environments by design. As long as your system requirements don't push beyond that ceiling, you're in good shape.

Question by: Gary H on Jul 9, 2025, 9:50 AM

What kinda machines this valve typically get used in? I'm workin' down at a foundry, see.

Answer by: Customer Support on Jul 10, 2025, 7:17 PM

These Vickers DGMDC-5 valves often find their way into die casting setups and foundries, as well as machine tools. They're also suitable for marine and offshore applications, presses, primary metal processing, paper mills, test equipment, simulation rigs, and even turbine controls, whether it's wind, steam, or water turbines.
