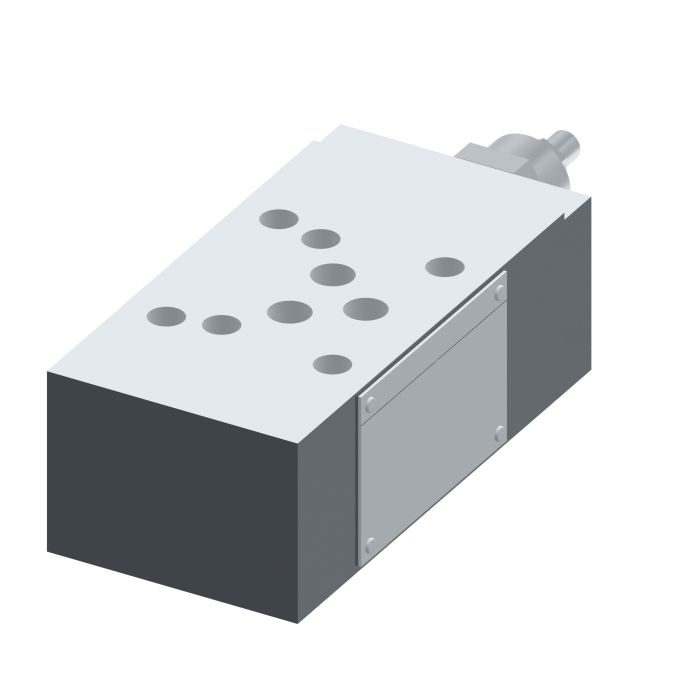

main product photo

VICKERS DGMC 5 PT GW B 30

Ask A Question

Description & Features

Designed for demanding industrial hydraulic circuits, the Vickers DGMC-5 PT GW B 30 is a SystemStak directional control valve from Eaton Vickers, suited for use in machine tool, press, marine/offshore, die casting, primary metal, turbine control, and test simulation applications. Its stacked valve architecture reduces installation costs by minimizing external connections and eliminating external leakage points.

Rated to a maximum flow of 120 litres per minute, this valve offers strong resistance to contamination, a critical factor in continuous-duty industrial environments. Buna-N seals are fitted as standard. The DGMC-5 series is a well-established platform within the Eaton Vickers SystemStak range, designed for modular hydraulic circuit integration.

SKU: 868300

Supplier Part Number (MPN): 868300

Alternate Part Numbers: C1KE31, DGMC5PTGWB30

Specifications

Actuator Type
Pressure Operated
Adjustment Type
Screw and Locknut
Body Material
Iron
Connection Type
Female BSP
Design
30 Series
Dimensions
7.56 in L x 2.82 in W x 1.97 in H
End Type
BSPF
External Drain
Without External Drain
Gauge Port Thread
G1/8 BSPF
Media
Petroleum Oil
Nominal Size
#5
Number of Stages
1
Performance
Standard
Port Drained Into
T Port
Port Operated Upon
Pressure Port
Remote Control Port
Without Remote Control Port
Seal Material
FKM
Segment Code
B
Series
DGMC-5 Series
Valve Mount Type
Subplate/Manifold

Product Questions & Answers (1)

Sign In Hover me Please sign in to submit a question
Question by: Connie B on Oct 2, 2025, 9:06 AM
flow rate on this unit, is it 120 LPM? trying to match it to our press setup and want to make sure before we order
Answer by: Customer Support on Oct 3, 2025, 12:20 PM
Yes, 120 litres per minute is the rated flow for this valve. For press applications specifically, the DGMC-5 is listed as a suitable fit, so you're working in the right direction pairing it with that kind of equipment.
