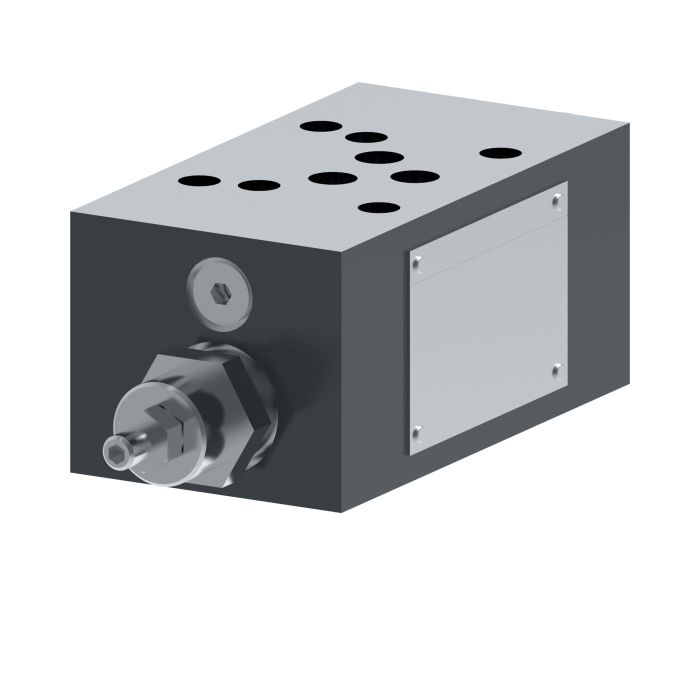

Vickers DGMC2 5 AT GW BT GW

Description & Features

This Vickers DGMC2 5 AT GW BT GW system stak valve is designed for applications such as die casting, foundry work, machine tools, marine and offshore environments, presses, primary metal production, paper mills, test equipment, simulation systems, and turbine control for wind, steam, and water power.

Featuring a 120 liter per minute flow rate and Buna-N seals, this valve helps reduce installation costs, eliminates external leakage, and boosts resistance to contamination. It has a width of 2.82 inches.

SKU: 868308

Supplier Part Number (MPN): 868308

Alternate Part Numbers: DGMC25ATGWBTGWB30

Specifications

Actuator Type Pressure Operated	Adjustment Type Screw and Locknut	Body Material Iron	Connection Type Female BSP	Design 30 Series	Dimensions 9.84 in L x 2.82 in W x 1.97 in H	End Type BSPF	External Drain Without External Drain	Function 1 Pressure Adjustment 60 to 4500 psi	Function 2 Pressure Adjustment 60 to 4500 psi	Gauge Port Thread G1/8 BSPF	Media Petroleum Oil	Nominal Size #5	Number of Stages 2	P Port Acted Upon B Cylinder Port	Performance Standard	Port Drained Into T Port	Port Drained Into Dual T Port	Port Operated Upon A Cylinder Port	Remote Control Port Without Remote Control Port	Seal Material FKM	Segment Code C	Series DGMC-2 Series	Valve Mount Type Subplate/Manifold

Product Questions & Answers (1)

Question by: Kent B on Jan 17, 2026, 8:12 PM

Can this handle the pressures in a hydraulic press application without any issues?

Answer by: Customer Support on Jan 19, 2026, 6:49 AM

Designed for applications including presses, this system stak valve can capably manage the demands of hydraulic press systems.
