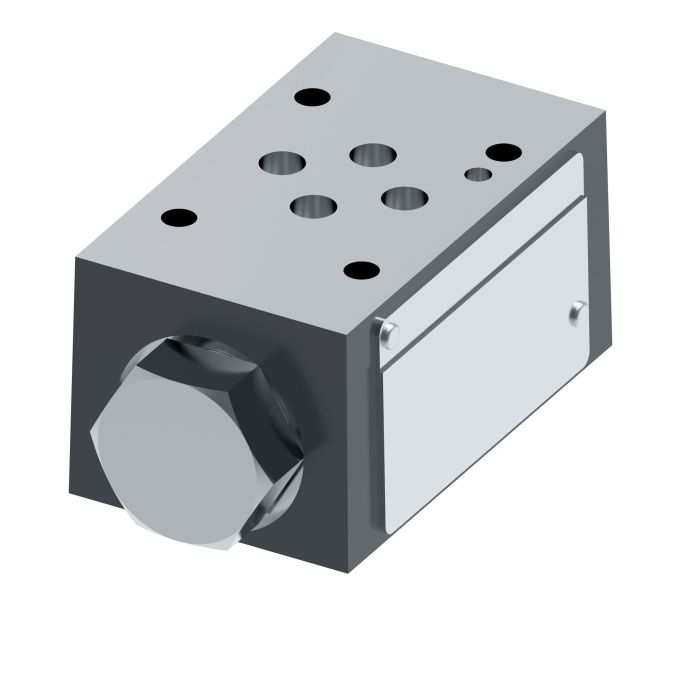

VICKERS DGMDC 3 Y BK 41

Description & Features

The Vickers DGMDC 3 Y BK 41 is a SystemStak valve designed to reduce installation costs and eliminate external leakage. Its design also boosts resistance to contamination.

This valve is suited for applications such as die casting and foundry, machine tools, marine/offshore, presses, primary metal, paper, test equipment and simulation, and turbine control (wind, steam, water). It has a Buna-N seal material and a flow rate of 60 litres per minute. Its product width is 1.87 inches.

SKU: 869633

Supplier Part Number (MPN): 869633

Alternate Part Numbers: DGMDC3YBK40

Specifications

Actuator Type Pressure Operated	Body Material Iron	Check Location Line B	Design Series 41 Series	Dimensions 3.5 in L x 1.87 in W x 1.57 in H	Direction of Flow Towards Actuator	Domestic/Import Domestic	Language English	Material Standard ANSI B93.7M-D03	Media Petroleum Oil	Mounting Type Manifold, Subplate	Nominal Size #03	Performance Standard	Seal Material FKM	Series DGMDC-3 Series	Valve Mount Type Subplate/Manifold

Product Questions & Answers (2)

Question by: Freddie H on Feb 14, 2026, 12:06 PM

got a DGMDC3YBK40 on the machine now, is this 3 Y BK 41 gonna swap in?

Answer by: Customer Support on Feb 16, 2026, 6:35 AM

The only confirmed cross reference here is that DGMDC3YBK40 is listed as an alternate part number for the VICKERS DGMDC 3 Y BK 41.

Question by: Dean C on Jun 13, 2025, 12:01 PM

Wondering what kind of seal this unit uses?

Answer by: Customer Support on Jun 15, 2025, 11:53 AM

It uses a Buna-N seal, which offers good resistance to petroleum-based fluids and some other chemicals.
