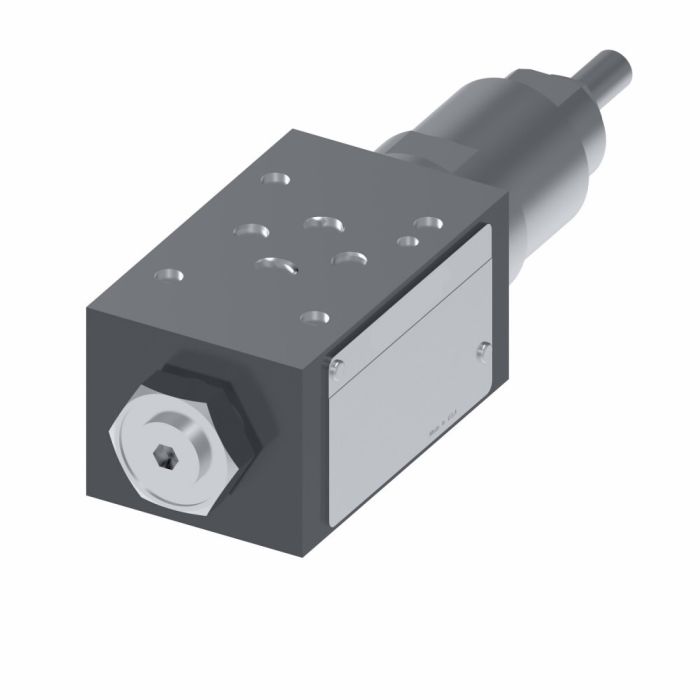

VICKERS DGMX2 3 PA AW S 40

Description & Features

Designed for machine tool and general industrial hydraulic circuits, the Vickers DGMX2 3 PA AW S 40 is a SystemStak directional control valve built to simplify manifold-style installations. The stacked valve configuration eliminates the need for additional external connections between components, reducing installation complexity and the associated risk of external leakage points.

Rated for flow up to 60 litres per minute, this valve uses Buna-N seals and is engineered to boost resistance to contamination, a practical advantage in demanding machine tool environments where fluid cleanliness directly affects system reliability. The SystemStak design allows multiple valves to be assembled in-line, keeping the overall footprint compact at a product width of 2.82 inches.

SKU: 870020

Supplier Part Number (MPN): 870020

Specifications

Actuator Type Pressure Operated	Adjustment Location Adjuster - B Port End of Valve	Adjustment Type Screw and Locknut	Body Material Iron	Connection Type Female UNF	Design Series 40 Series	Dimensions 6.65 in L x 2.82 in W x 2.36 in H	Domestic/Import Domestic	End Type Female UNF	Function Ports Reducing Line P, Pilot Line A	Gauge Port Thread SAE 4 (7/16-20 UNF-2B)	Language English	Media Petroleum Oil	Nominal Size #03	Number of Ports/Ways 3-Port	Number of Stages 1	Performance Standard	Seal Material FKM	Series DGMX2-3 Series	Valve Mount Type Subplate/Manifold

Product Questions & Answers (1)

Question by: Dwayne T on Feb 12, 2026, 12:02 PM

Will this valve fit on my existing SystemStak manifold setup?

Answer by: Customer Support on Feb 13, 2026, 3:57 PM

This SystemStak design allows for in-line assembly with other compatible valves, maintaining a compact footprint with a width of just 2.82 inches, which should make it easier to integrate into existing manifold systems.
