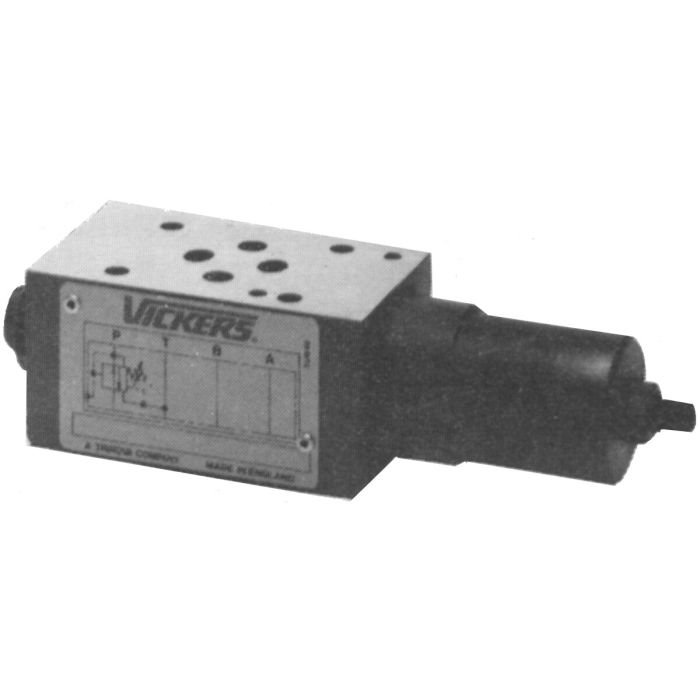

VICKERS DGMX2 3 PP CW S 40

Ask A Question

Description & Features

The Eaton Vickers DGMX2 3 PP CW S 40 is a system stack valve designed for machine tool and various industrial applications. This Vickers valve helps reduce installation costs and eliminate external leakage while boosting resistance to contamination.

With a flow rate of 60 liters per minute, this directional control valve features Buna-N seals and a product width of 2.82 inches.

SKU: 870040

Supplier Part Number (MPN): 870040

Alternate Part Numbers: C1CA50, DGMX23PPCWS40

Specifications

Brand
Vickers by Danfoss
Actuator Type
Pressure Operated
Adjustment Location
Adjuster - B Port End of Valve
Adjustment Type
Screw and Locknut
Body Material
Iron
Connection Type
Female UNF
Design Series
40 Series
Dimensions
6.65 in L x 2.82 in W x 2.36 in H
Domestic/Import
Domestic
End Type
Female UNF
Function Ports
Reducing Line P, Pilot Line P
Gauge Port Thread
SAE 4 (7/16-20 UNF-2B)
igs Only
With igs
Language
English
Media
Petroleum Oil
Nominal Size
#03
Number of Ports/Ways
3-Port
Number of Stages
1
Performance
Standard
Seal Material
FKM
Series
DGMX2-3 Series
Valve Mount Type
Subplate/Manifold

Product Questions & Answers (2)

Question by: Harold J on Apr 5, 2025, 5:32 PM
Reckon this'll fit on my existing manifold setup?
Answer by: Customer Support on Apr 6, 2025, 8:37 PM
Designed for system stack mounting, the DGMX2-3 40 valve should integrate easily into existing setups. It helps reduce installation costs.
Question by: Todd B on Nov 9, 2025, 7:22 PM
flow rate on this one, is 60 LPM enough for most machine tool setups, or is that on the low end?
Answer by: Customer Support on Nov 11, 2025, 1:06 PM
For a wide range of machine tool applications, 60 liters per minute is a solid working flow rate. SystemStak valves like this one are built around stacked configurations, so you can manage flow across multiple circuits without pushing any single valve beyond its limits. Most standard machine tool cycles run well within that range, so unless you're running something with unusually high simultaneous demand, this fits the bill.
