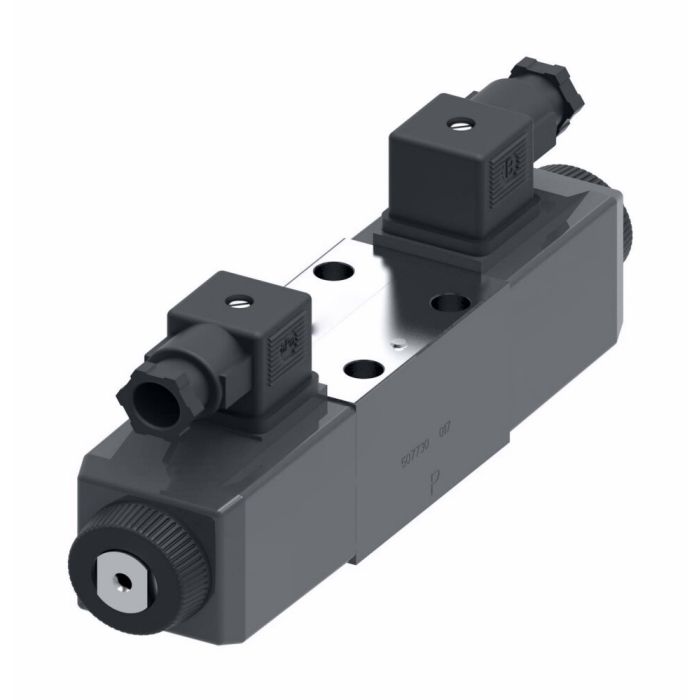

A low leakage, high head loss directional control valve rated for flow up to 80 litres per minute, the Vickers DG4V36CHMU1D660EN38 is designed for demanding hydraulic applications where minimising internal leakage is a priority. Typical leakage is 5 ml/min/land at 100 bar, achieved through specially engineered spools with increased overlap, approximately twice the head loss of a standard valve.
Fitted with Buna-N seals and a 1.8-inch body width, this directional control valve suits a broad range of industrial environments, including machine tool, press, primary metal, marine and offshore, die casting and foundry, turbine control, and test and simulation equipment. Assembly drawing reference 698501 and installation drawing 508190 apply. Technical publication reference is TP 698502.
SKU: 870617
Supplier Part Number (MPN): 870617
Alternate Part Numbers: DG4V36CHMU1D660EN38
Loading related products…
Specifications
Alternate Part Numbers
Alternate Part NumberDG4V36CHMU1D660EN38, Alternate Part Number MINO-00900X64898
Application
Die casting & foundry, Machine tool, Marine/Offshore, Press, Primary metal, paper, Test equipment & simulation, Turbine control (wind, steam, water)
Class
WEB-ITEM
Brand
Danfoss (Power Solutions II LLC)
Brand
Vickers
Pack Size
1.00
UOM
EA
Flow Rate1
80 litre per minute
ICC
IV Directional Control Valves
Language
English
Product Width
1.80
Seal Material
Buna-N
Special Features
LOW LEAKAGE / HIGH HEAD LOSS VERSION. TYPICAL LEAKAGE 5ML/MIN/LAND AT 100BAR HEADLOSS X 2 STANDARD VALVE. SPECIAL SPOOLS HAVE INCREASED OVERLAP. INSTALLATION DRG NO 508190. ASSY DRG NO 698501. TP 698502
Supplier Part Number
870617
Product Weight
0.99 lbs
Product Questions & Answers (1)
Question by: Chad M on Aug 24, 2025, 9:19 PM
Reckon this valve could handle running steady in a machine tool application?
Answer by: Customer Support on Aug 26, 2025, 6:11 AM
Designed for demanding industrial environments, this Vickers valve is well-suited for machine tool applications, along with press, primary metal, marine and offshore, die casting and foundry, turbine control, and test and simulation equipment.
