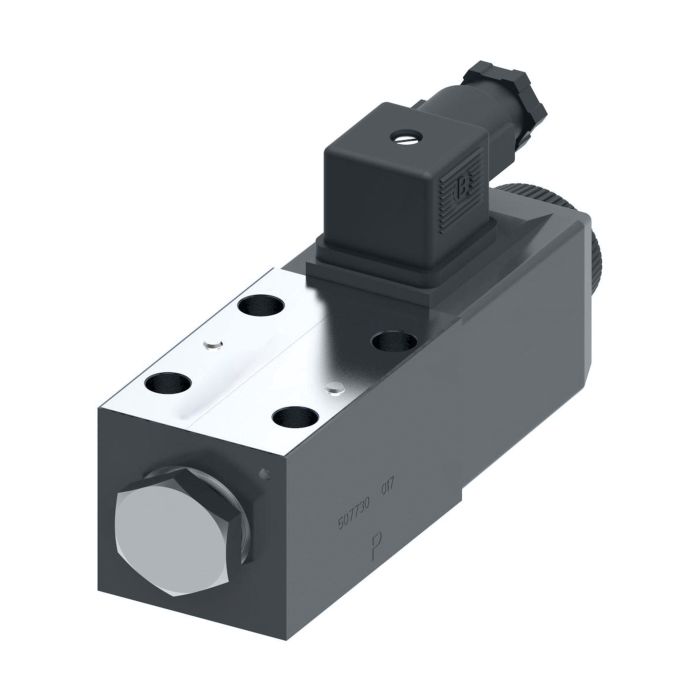

VICKERS DG4V32ALHMU1D660EN38

Ask A Question

Description & Features

Rated for flows up to 80 litres per minute, the Vickers DG4V32ALHMU1D660EN38 is a directional control valve designed for demanding industrial hydraulic circuits. Buna-N seals provide reliable compatibility with standard hydraulic fluids across a broad range of operating conditions.

This valve suits a wide range of industrial sectors, including machine tool, press, primary metal, marine and offshore, die casting and foundry, turbine control, and test equipment and simulation applications. Its versatility across these environments reflects a design built for consistent performance under varying duty cycles and fluid conditions.

SKU: 870722

Supplier Part Number (MPN): 870722

Specifications

Brand
Vickers by Danfoss
Actuator Type
Solenoid
Body Material
Iron
Color
Gray
Design
60 Series
Dimensions
5.75 in L x 1.8 in W x 3.42 in H
Electrical Connection
ISO 4400 Fitted Plugs
Enclosure Type
IP66
Indicator Light
Without Indicator Light
Manual Override
Waterproof
Media
Petroleum Oil
Number of Ports/Ways
4-Port
Number of Stages
1
Performance
High
Seal Material
FKM
Segment Code
B
Series
DG4V-3 60 Series
Softgoods Material
FKM
Special Features
Low Leakage
Spool Position Monitor
Without Spool Position Monitor
Spool Type
Spool 2
Spring Arrangement
Spring Offset End to End LH
Surge Suppressor Damper
Without Surge Suppressor Damper
Valve Mount Type
Subplate/Manifold

Product Questions & Answers (1)

Question by: Travis T on Aug 2, 2025, 5:29 PM
What kind of fluids can I run through this valve without issues?
Answer by: Customer Support on Aug 4, 2025, 6:18 AM
Buna-N seals provide reliable compatibility with standard hydraulic fluids.
