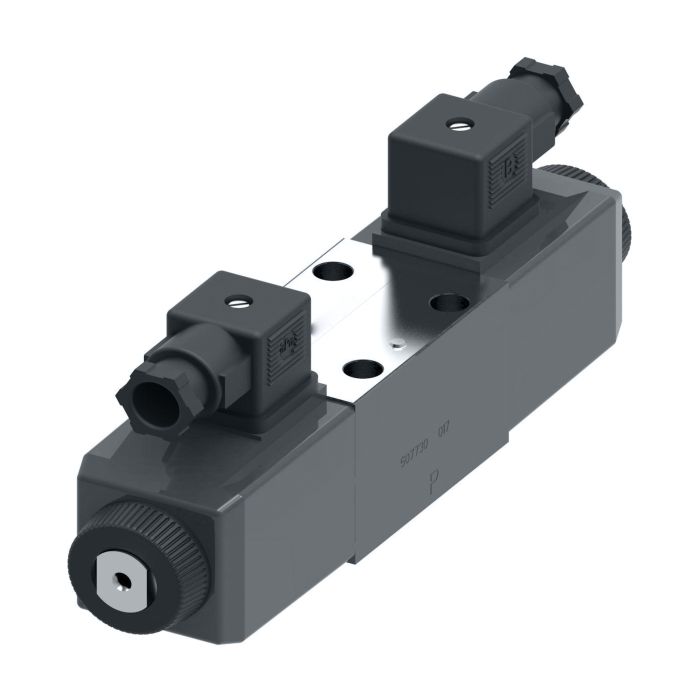

VICKERS DG4V 3 6C M U1 H7 60

Ask A Question

Description & Features

Designed for three- or four-way directional control in demanding industrial hydraulic circuits, the Vickers DG4V 3 6C M U1 H7 60 is a single-stage directional control valve rated for flow up to 80 litres per minute. With a solenoid draw of 30 watts and Buna-N seals, it suits a wide range of hydraulic media and operating conditions.

Mounting follows industry-standard subplate patterns, making installation straightforward in both new builds and retrofit applications. This valve is suitable across a broad spectrum of industries, including machine tool, press, marine and offshore, die casting and foundry, primary metal and paper, turbine control, and test equipment and simulation environments. Thousands of model variants are available within the Vickers DG4V-3 series to accommodate specific circuit requirements.

SKU: 870926

Supplier Part Number (MPN): 870926

Alternate Part Numbers: DG4V36CMU1H760

Specifications

Brand
Vickers by Danfoss
Actuator Type
Solenoid
Design
60 Series
Dimensions
8.66 in L x 1.8 in W x 3.42 in H
Domestic/Import
Domestic
Electrical Connection
ISO 4400 Fitted Plugs
Indicator Light
Without Indicator Light
Manual Override
Plain
Media
Petroleum Oil
Number of Stages
1
Performance
High
Seal Material
FKM
Segment Code
B
Series
DG4V-3 60 Series
Spool Position Monitor
Without Spool Position Monitor
Spool Type
Spool 6
Spring Arrangement
Spring Centered
Surge Suppressor Damper
Without Surge Suppressor Damper
Valve Mount Type
Subplate/Manifold

Product Questions & Answers (1)

Question by: Keith W on Dec 1, 2025, 12:49 PM
Reckon this valve can handle gettin' mounted on somethin' standard?
Answer by: Customer Support on Dec 3, 2025, 6:04 AM
Industry-standard surfaces are no problem for this valve; it's designed for easy mounting.
