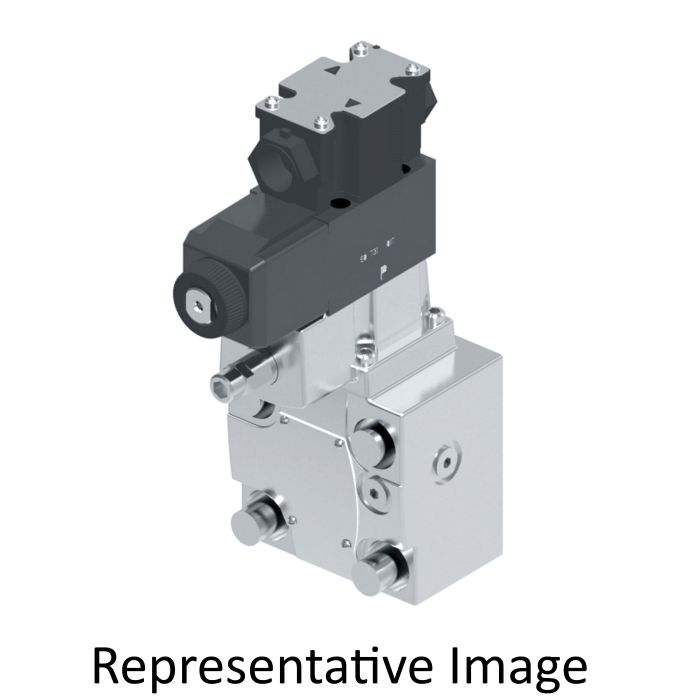

Vickers CG5V 6CW D M U B6 11

Ask A Question

Description & Features

Designed for industrial hydraulic systems requiring reliable pressure control, the Vickers CG5V 6CW D M U B6 11 is a solenoid-controlled pressure valve rated for flow up to 200 litres per minute. Buna-N seals provide moisture resistance and dependable performance across a range of hydraulic media.

This valve supports electrical on/off load switching from solenoid-controlled configurations, and allows remote parallel control through pilot valves connected to the vent port. Pressure override is optimised without compromising other performance parameters. The plug-and-play design simplifies installation and integration into existing hydraulic circuits.

Part of the Eaton Vickers pressure valve range, this unit is well suited to industrial machinery and hydraulic power units where precise pressure management and flexible control options are required.

SKU: 871354

Supplier Part Number (MPN): 871354

Alternate Part Numbers: CG5V6CWDMUB611

Specifications

Brand
Vickers by Danfoss
Actuator Type
Solenoid
Adjustment Type
Screw with Locknut
Body Material
Iron
Design
11 Series
Dimensions
6.3 in L x 3.23 in W x 8 in H
Domestic/Import
Domestic
Indicator Light
Without Indicator Light
Nominal Size
#06
Number of Stages
2
Seal Material
Buna-N
Series
CG5-06 Series
Special Features
Electrical On-Off Load from Solenoid Controlled Models, Remote Parallel Control by Other Pilot Valves Connected to "Vent" Port, Pressure Override Optimized without Detriment to Other Performance Parameters
Valve Mount Type
Subplate
Voltage Rating
110 VAC at 50 Hz, 120 VAC at 60 Hz

Product Questions & Answers (1)

Sign In Hover me Please sign in to submit a question
Question by: Pete G on Apr 5, 2025, 6:59 PM
How much flow can this valve handle? I'm lookin' at usin' it on a system that pushes a good bit.
Answer by: Customer Support on Apr 7, 2025, 9:08 AM
It's rated for a flow rate of up to 200 liters per minute, so you should be good to go even with a pretty demanding system.
