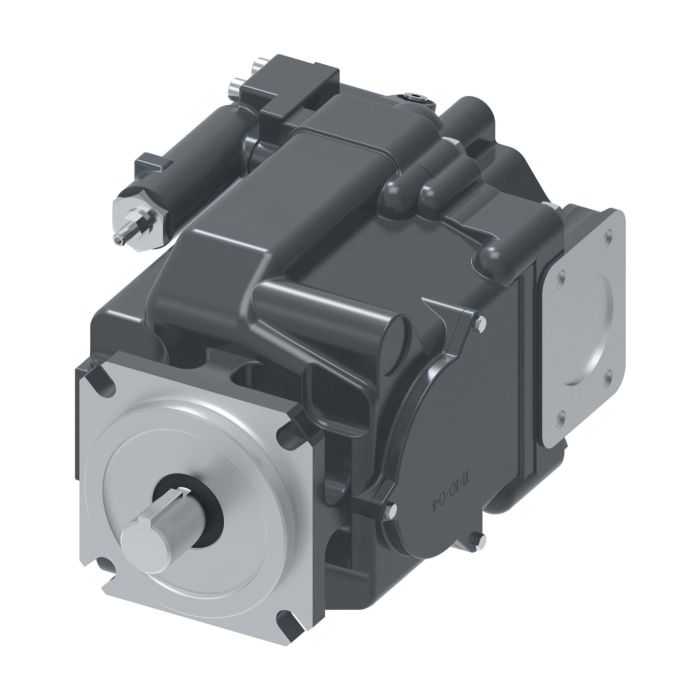

VICKERS PVH98QIC RAF 13S 10

Ask A Question

Description & Features

Designed for demanding industrial and mobile hydraulic applications, the Vickers PVH98QIC RAF 13S 10 is an open circuit axial piston pump built to handle high-cycle and high-load environments. Its durable construction and torque-limiting capabilities make it well suited for metal forming machines, metal cutting equipment, injection molding machines, and conveyor lines, as well as oil and gas equipment and primary metals applications.

Part of the Eaton/Danfoss PVH Series, this pump is engineered for consistent performance under variable load conditions. Torque-limiting functionality helps protect drive components by preventing overload during pressure spikes, supporting reliable service life across heavy-duty industrial machinery and mining equipment.

SKU: 877023

Supplier Part Number (MPN): 877023

Specifications

Brand
Vickers by Danfoss
Code Title
Vickers Pressure Compensated/Pressure Flow Compensated Open Circuit Piston Pump
Control Type
Pressure and Flow Compensator
Design Code
A
Dimensions
15.18 in L x 9.17 in W x 10.77 in H
Drain Port Size Location
7/8-14 UNF-2B SAE O-ring Port - Bottom (Top Plugged)
Drive Shaft Type
Straight Keyed
Front Mounting Input Shaft
4-Bolt C (SAE J744-127-4) with 38.1 [1-1/2] Dia Straight Keyed Shaft (Key Included), 62 mm [2.44 in] Shaft Extension
Housing Material
Iron
Main Ports Size Location
Side Ports, Suction - 2-1/2 SAE 4 Bolt Split Flanged Port Standard Pressure Series (Code 61) with 1/2-13 UNC-2B Threads, Pressure - 1 SAE 4 Bolt Split Flanged Port Standard Pressure Series (Code 61) with 3/8-16 UNC-2B Threads
Mounting Type
2-Bolt Flanged
Pressure Compensator Setting
246 to 254
Rotation Direction
Clockwise (Right Hand)
Seal Material
Fluorocarbon
Series
PVH Series
Special Features
Q250 Valve Plate

Product Questions & Answers (1)

Question by: Janet R on Sep 20, 2025, 5:11 PM
Reckon this thing can handle runnin' near constant in some oilfield gear?
Answer by: Customer Support on Sep 22, 2025, 6:53 AM
This Vickers PVH series pump is built for demanding environments. Its durable construction and torque-limiting features make it suitable for oil and gas equipment, among other heavy-duty applications.
