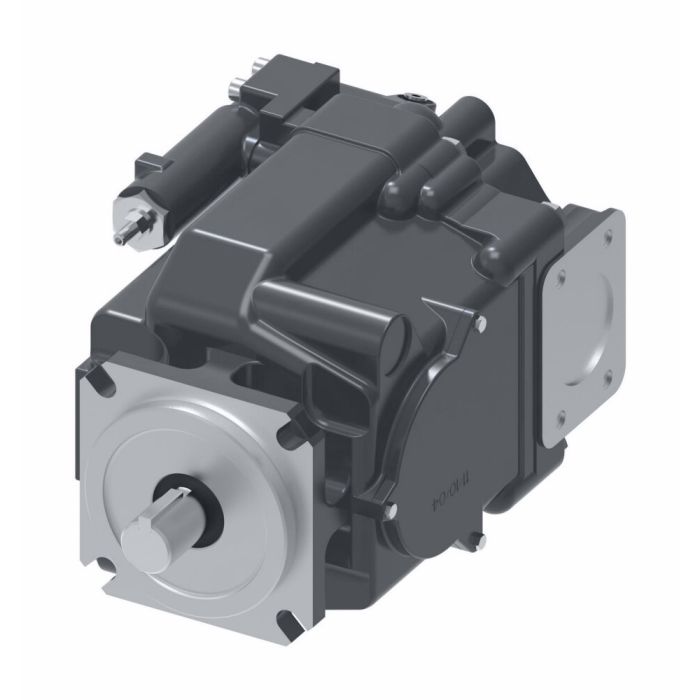

main product photo

VICKERS PVH131QIC RAF 16S

Ask A Question

Description & Features

The Vickers PVH131QIC RAF 16S piston pump is suitable for demanding applications, including mining machinery, injection molding machines, metal forming machines, and oil and gas equipment. It is also used in conveyor lines, primary metals, and metal cutting equipment.

This open circuit piston pump features long-lasting durability and torque-limiting capabilities, with a durable construction designed for extended service life.

SKU: 877466

Supplier Part Number (MPN): 877466

Alternate Part Numbers: PVH131QICRAF16S10C25V31

Specifications

Brand
Vickers by Danfoss
Code Title
Vickers Pressure Compensated/Pressure Flow Compensated Open Circuit Piston Pump
Control Type
Pressure and Flow Compensator
Design Code
A
Dimensions
17.04 in L x 10 in W x 11.29 in H
Drain Port Size Location
7/8-14 UNF-2B SAE O-ring Port - Bottom (Top Plugged)
Drive Shaft Type
Straight Keyed
Front Mounting Input Shaft
4-Bolt C (SAE J744-127-4) with 44.4 [1-3/4] Dia Straight Keyed Shaft (Key Included), 75 mm [2.95 in] Shaft Extension
Housing Material
Iron
Main Ports Size Location
Side Ports, Suction - 2-1/2 SAE 4 Bolt Split Flanged Port Standard Pressure Series (Code 61) with 1/2-13 UNC-2B Threads, Pressure - 1-1/40 SAE 4 Bolt Split Flanged Port High Pressure Series (Code 62) with 1/2-13 UNC-2B Threads
Mounting Type
2-Bolt Flanged
nmfc
125820
Pressure Compensator Setting
246 to 254
Rotation Direction
Clockwise (Right Hand)
Seal Material
Fluorocarbon
Series
PVH Series
Special Features
Q250 Valve Plate

Product Questions & Answers (1)

Question by: Eddie P on Jul 26, 2025, 4:14 PM
Will this work for machinery used in metal forming?
Answer by: Customer Support on Jul 27, 2025, 4:58 PM
This Vickers piston pump is definitely suitable for metal forming machines, as well as mining, injection molding, oil and gas, conveyor lines, and metal cutting equipment.
