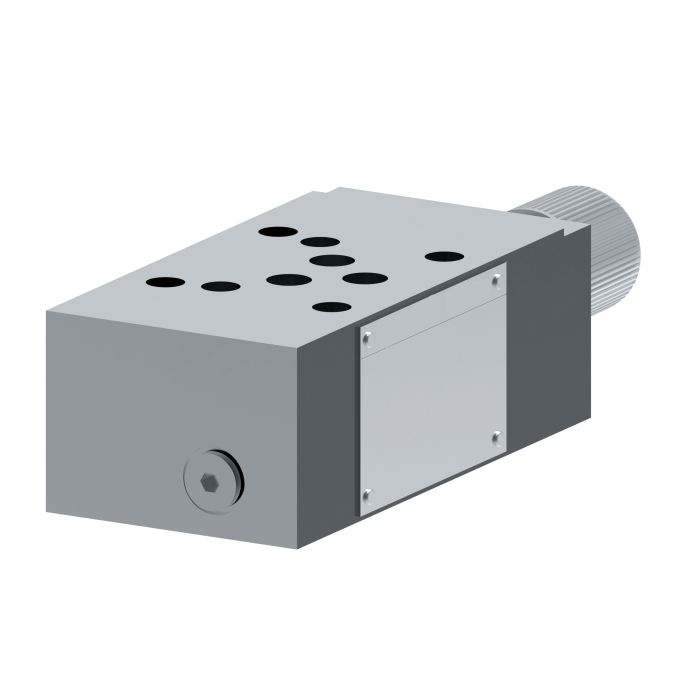

main product photo

VICKERS DGMC 5 PT GH B 30

Ask A Question

Description & Features

The Vickers DGMC 5 Pt GH B 30 is a SystemStak directional control valve from Eaton Vickers, designed for stacked hydraulic circuit assemblies across demanding industrial environments. With a flow capacity of 120 litres per minute and Buna-N seals, it is well suited for use in machine tool, press, marine/offshore, die casting and foundry, primary metal, turbine control, and test and simulation applications.

SystemStak construction reduces installation costs by eliminating the need for separate manifolds and external interconnecting lines, which also helps eliminate external leakage and boosts contamination resistance. This design approach supports compact, reliable hydraulic circuit integration where cleanliness and leak-free performance are priorities.

SKU: 879036

Supplier Part Number (MPN): 879036

Alternate Part Numbers: DGMC5PTGHB30

Specifications

Brand
Vickers by Danfoss
Actuator Type
Pressure Operated
Adjustment Type
Knob
Body Material
Iron
Design
30 Series
Dimensions
7.91 in L x 2.82 in W x 1.97 in H
Domestic/Import
Domestic
External Drain
Without External Drain
Gauge Port Thread
G1/8 BSPF
Media
Petroleum Oil
Nominal Size
#5
Number of Stages
1
Performance
Standard
Port Drained Into
T Port
Port Operated Upon
Pressure Port
Remote Control Port
Without Remote Control Port
Seal Material
FKM
Segment Code
B
Series
DGMC Series
Valve Mount Type
Subplate/Manifold

Product Questions & Answers (2)

Question by: Gary W on Jun 4, 2025, 9:10 AM
flow rate on this one, is it 120 LPM? trying to match it up to what we already got running on the press line
Answer by: Customer Support on Jun 6, 2025, 6:20 AM
Yes, 120 litres per minute is the rated flow for this valve. That puts it in solid territory for press applications, which is actually one of the listed use cases for this unit alongside machine tool and die casting setups.
Question by: Vince W on Apr 22, 2025, 2:46 PM
Is this DGMC-5 stack valve a direct replacement for the older Vickers models? I'm lookin' to swap one out on a metal press.
Answer by: Customer Support on Apr 24, 2025, 9:24 AM
This DGMC-5 valve is part of the Vickers SystemStak line, designed as a modular solution. You'll want to double-check your specific press requirements against the flow rate and application suitability to be certain.
