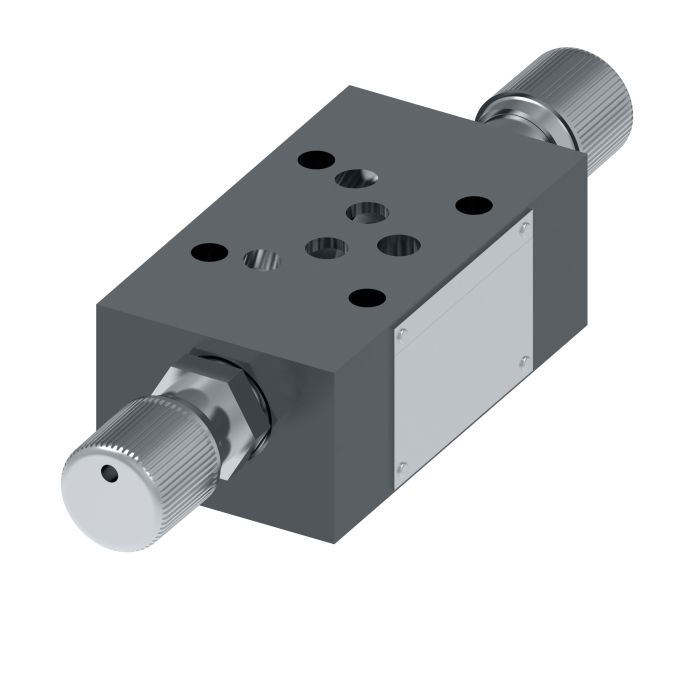

main product photo

Vickers DGMC2 5 AT BH BT BH

Ask A Question

Description & Features

Ideal for diverse industrial applications such as die casting, marine/offshore, and turbine control, the Eaton Vickers DGMC2 5 AT BH BT BH valve is a robust solution for demanding environments. This directional control valve is designed to minimize installation costs and eliminate external leakage, enhancing system efficiency. Constructed with Buna-N seals, it offers enhanced resistance to contamination, ensuring reliable performance.

With a flow rate of 120 liters per minute, this valve is optimized for high-performance use across primary metal, paper, and test equipment applications. Its compact width of 2.82 inches allows for flexible integration into various systems. As part of the Vickers brand, known for durability and innovation, this valve is a dependable choice for machine tool and press applications.

SKU: 879041

Supplier Part Number (MPN): 879041

Alternate Part Numbers: DGMC25ATBHBTBHB30

Specifications

Actuator Type
Pressure Operated
Adjustment Type
Knob
Body Material
Iron
Design
30 Series
Dimensions
10.54 in L x 2.82 in W x 1.97 in H
Domestic/Import
Domestic
External Drain
Without External Drain
Function 1 Pressure Adjustment
60 to 1450 psi
Function 2 Pressure Adjustment
60 to 1450 psi
Gauge Port Thread
G1/8 BSPF
Media
Petroleum Oil
Nominal Size
#5
Number of Stages
2
P Port Acted Upon
B Cylinder Port
Performance
Standard
Port Drained Into
T Port
Port Drained Into Dual
T Port
Port Operated Upon
A Cylinder Port
Remote Control Port
Without Remote Control Port
Seal Material
FKM
Segment Code
C
Series
DGMC-2 Series
Valve Mount Type
Subplate/Manifold

Product Questions & Answers (1)

Sign In Hover me Please sign in to submit a question
Question by: Danny H on Apr 19, 2025, 1:21 PM
flow rate on this one -- is 120 liters per minute the max it'll handle, or is that a continuous rating?
Answer by: Customer Support on Apr 20, 2025, 8:36 PM
120 liters per minute is the rated flow capacity for this valve. That figure represents what the DGMC2-5 is built to handle in operation, so you'd want to stay at or below that threshold to keep things running right. Pushing past rated flow on a directional control valve tends to cause pressure drop issues and accelerated wear on the sealing surfaces, so treat 120 LPM as your ceiling.
