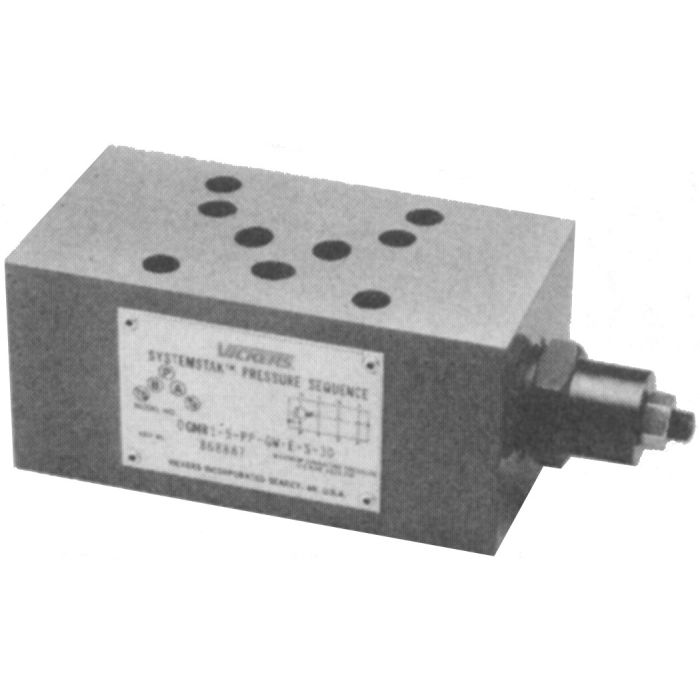

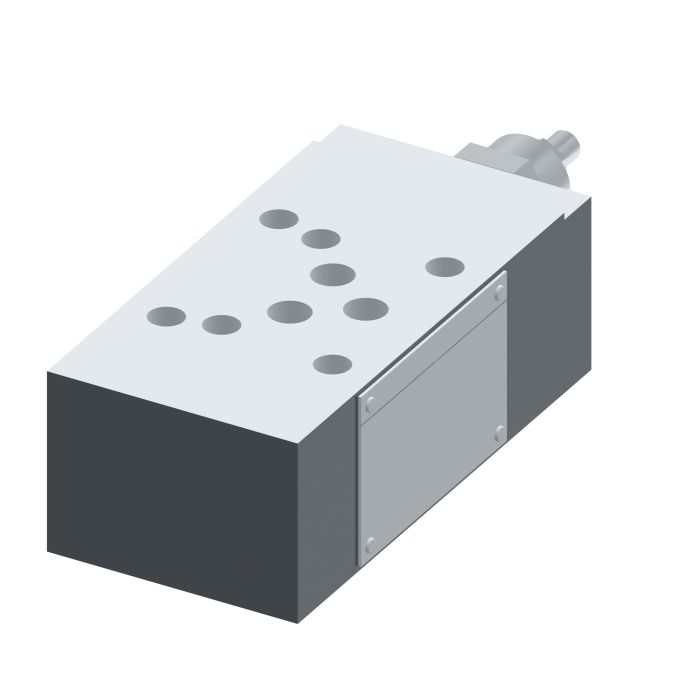

VICKERS DGMC 5 PT FW B 30

Ask A Question

Description & Features

The Eaton Vickers DGMC 5 PT FW B 30 is a system stack valve designed to reduce installation costs and eliminate external leakage. Its design also boosts resistance to contamination.

This Vickers valve is suitable for applications such as die casting and foundry, machine tools, marine/offshore, presses, primary metal, paper, test equipment, simulation, and turbine control (wind, steam, and water). It features Buna-N seals and a 120 litre per minute flow rate.

Width: 2.82 inches.

SKU: 879342

Supplier Part Number (MPN): 879342

Alternate Part Numbers: C1KE88, DGMC5PTFWB30

Specifications

Actuator Type
Pressure Operated
Adjustment Type
Screw and Locknut
Body Material
Iron
Design
30 Series
Dimensions
7.56 in L x 2.82 in W x 1.97 in H
Domestic/Import
Domestic
External Drain
Without External Drain
Gauge Port Thread
G1/8 BSPF
Media
Petroleum Oil
Nominal Size
#5
Number of Stages
1
Performance
Standard
Port Drained Into
T Port
Port Operated Upon
Pressure Port
Remote Control Port
Without Remote Control Port
Seal Material
FKM
Series
DGMC Series
Valve Mount Type
Subplate/Manifold

Product Questions & Answers (2)

Sign In Hover me Please sign in to submit a question
Question by: Danny B on May 15, 2025, 3:26 PM
flow rate on this one -- is 120 liters per minute the max it'll handle or just a typical rating?
Answer by: Customer Support on May 17, 2025, 6:50 AM
120 litres per minute is the rated flow for this valve. Running right at the rated ceiling on a continuous basis is generally harder on any valve than staying somewhat below it, so if your system is pushing close to that number regularly, it's worth factoring in some headroom when you're sizing things out.
Question by: Dustin W on Sep 19, 2025, 8:29 AM
Will this work on a paper machine? Seems like it would hold up okay.
Answer by: Customer Support on Sep 21, 2025, 6:03 AM
Absolutely. This Vickers DGMC valve is suitable for paper applications, along with die casting, machine tools, marine/offshore, presses, primary metal, test equipment and simulation, and turbine control.
