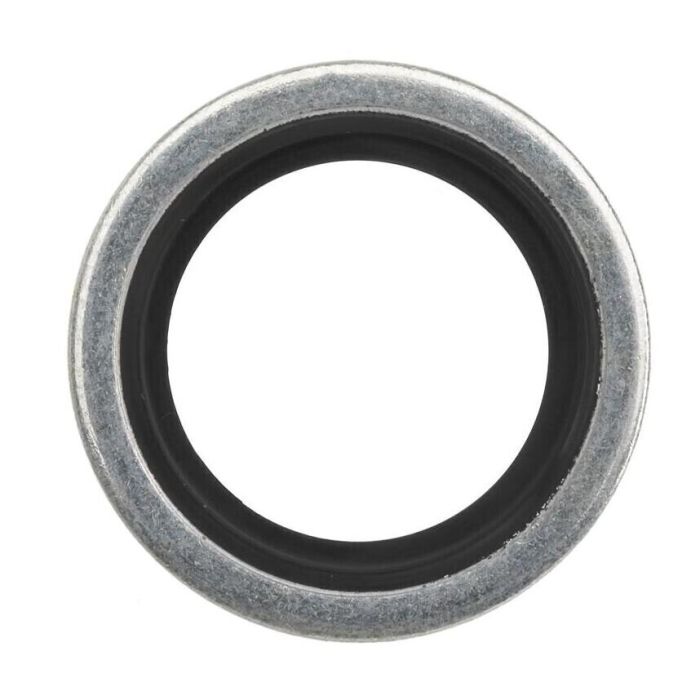

8MM METRIC BONDED SEAL

Description & Features

Designed for metric hydraulic connections, the 8MM Metric Bonded Seal provides a reliable face seal for size 08 metric threaded ports conforming to ISO 9974. The bonded construction integrates a 90 durometer NBR sealing element with a straight steel washer, delivering consistent compression and effective leak prevention across hydraulic systems operating with standard metric port hardware.

The NBR compound offers good compatibility with petroleum-based hydraulic fluids and is suited for general industrial hydraulic applications. With an inner diameter of 6.4mm and an outer diameter of 13.0mm, this seal is sized to fit size 08 metric threaded fittings and ports as specified by the ISO 9974 standard. Manufactured by Brennan Industries under the 8800 Series, it is a straightforward replacement or assembly component for metric port sealing. California residents should note this product is subject to Proposition 65 warning requirements.

SKU: 8800-08

Supplier Part Number (MPN): 8800-08

Specifications

Brand
BRENNAN
Color
Black
Cubic Inch Space L x W x H Dimensions
0.017 cu-in
Durometer
85
Material
Nitrile/Steel
Material Construction
Buna-N/Steel
Operating Temperature
-40 to 250 deg F
Series
ISO-9974-Metric-Bonded-Seal Series
Size
M08

Similar Products

Model Number Size Inside Diameter Outside Diameter Thickness Price Action
6MM METRIC BONDED SEAL

8800-06

6 in

10MM METRIC BONDED SEAL

8800-10

10 mm

BRENNAN 12mm METRIC BONDED SEAL

8800-12

12 mm

14MM METRIC BONDED SEAL

8800-14

16MM METRIC BONDED SEAL

8800-16

16 mm

18MM METRIC BONDED SEAL

8800-18

20MM METRIC BONDED SEAL

8800-20

22MM METRIC BONDED SEAL

8800-22

ADAPTALL SEAL FOR 24BSPP

8800-24

M24

26 METRIC BONDED SEAL 90 DUROMETER NBR

8800-26

Product Questions & Answers (1)

Question by: Jerry F on Jun 14, 2025, 6:54 AM
So, this is just for metric fittings, right? Won't work on standard stuff?
Answer by: Customer Support on Jun 15, 2025, 8:43 AM
Correct. This bonded seal is specifically designed for metric hydraulic connections, fitting size 08 metric threaded ports as defined by the ISO 9974 standard. It will not work with standard or imperial sized fittings.
