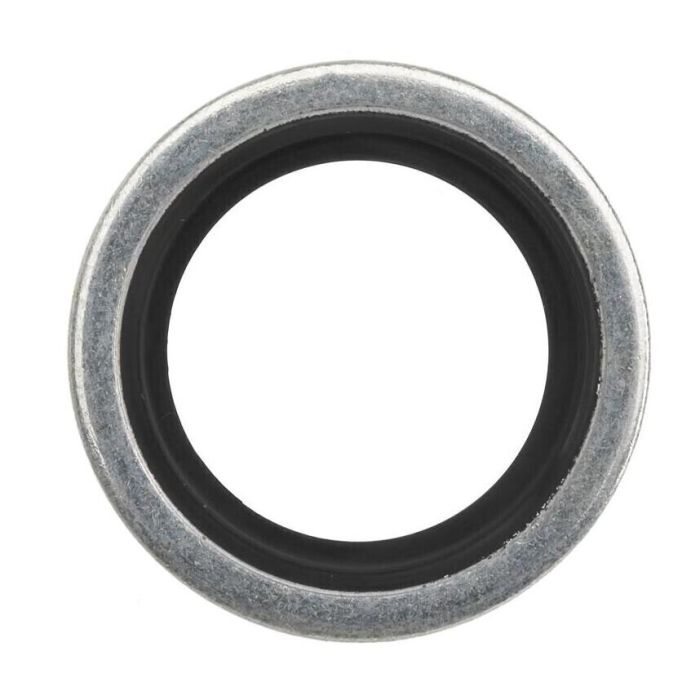

18MM METRIC BONDED SEAL

Description & Features

Designed for use with size 18 metric threads, this bonded seal combines a steel washer with a 90 durometer NBR sealing element to create a reliable face seal on male metric hydraulic fittings and ports. Conforming to ISO 9974, it is suited for applications requiring a leak-free seal at threaded metric connections in hydraulic systems.

The 18mm Metric Bonded Seal features an inner diameter of 14.76 mm and an outer diameter of 26.0 mm, with the NBR compound providing resistance to petroleum-based fluids commonly encountered in hydraulic circuits. The straight steel washer construction and compact form factor make it a practical sealing solution across a wide range of industrial hydraulic equipment. Manufactured by Brennan Industries under their 8800 Series. California residents should note this product is subject to Prop 65 warnings.

SKU: 8800-18

Supplier Part Number (MPN): 8800-18

Specifications

Brand
BRENNAN
Color
Black
Cubic Inch Space L x W x H Dimensions
0.095 cu-in
Durometer
85
Material
Nitrile/Steel
Material Construction
Buna-N/Steel
Operating Temperature
-40 to 250 deg F
Series
ISO-9974-Metric-Bonded-Seal Series

Similar Products

Model Number Size Inside Diameter Outside Diameter Thickness Price Action
6MM METRIC BONDED SEAL

8800-06

6 in

8MM METRIC BONDED SEAL

8800-08

M08

10MM METRIC BONDED SEAL

8800-10

10 mm

BRENNAN 12mm METRIC BONDED SEAL

8800-12

12 mm

14MM METRIC BONDED SEAL

8800-14

16MM METRIC BONDED SEAL

8800-16

16 mm

20MM METRIC BONDED SEAL

8800-20

22MM METRIC BONDED SEAL

8800-22

ADAPTALL SEAL FOR 24BSPP

8800-24

M24

26 METRIC BONDED SEAL 90 DUROMETER NBR

8800-26

Product Questions & Answers (1)

Question by: Brett F on Aug 11, 2025, 8:18 PM
What size threads does this seal work with? Just wanna make sure I'm gettin' the right thing for my metric fittings.
Answer by: Customer Support on Aug 13, 2025, 5:43 PM
This bonded seal is made for size 18 metric threads. It fits male metric hydraulic fittings and ports.
