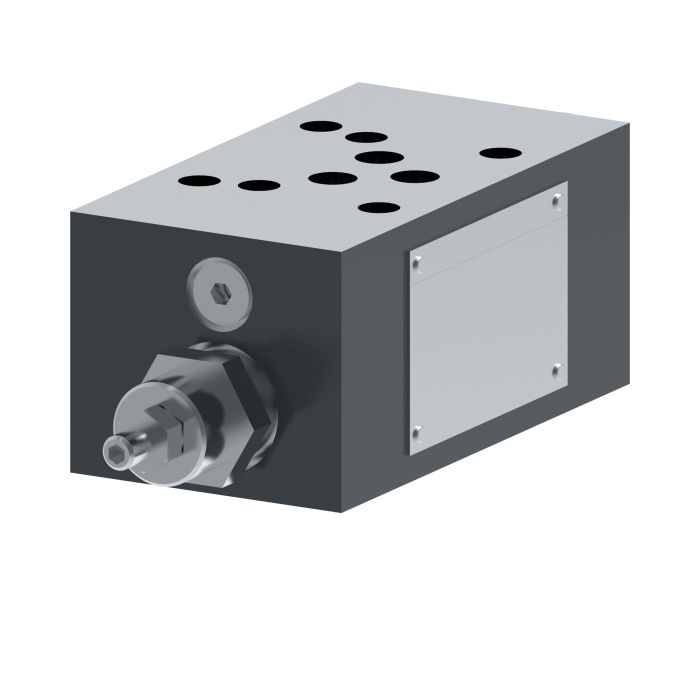

Vickers DGMC2 5 AB AW BA AW

Description & Features

This Vickers DGMC2 5 AB AW BA AW directional control valve is suitable for applications such as die casting and foundry work, machine tools, marine/offshore, presses, primary metal processing, plastics, pulp and paper, and test equipment.

Features of this valve include reduced installation costs, elimination of external leakage, and boosted resistance to contamination. It is designed with Buna-N seals and offers a flow rate of 120 liters per minute.

SKU: 880711

Supplier Part Number (MPN): 880711

Specifications

Actuator Type Pressure Operated	Adjustment Type Screw and Locknut	Body Material Iron	Connection Type SAE	Design 30 Series	Dimensions 8.46 in L x 2.82 in W x 1.97 in H	End Type SAE	External Drain Without External Drain	Function 1 Pressure Adjustment 60 to 725 psi	Function 2 Pressure Adjustment 60 to 725 psi	Gauge Port Thread SAE 4 O-ring Boss Port	Media Petroleum Oil	Nominal Size #5	Number of Stages 2	P Port Acted Upon B Cylinder Port	Performance Standard	Port Drained Into B Cylinder Port	Port Drained Into Dual A Cylinder Port	Port Operated Upon A Cylinder Port	Remote Control Port Without Remote Control Port	Seal Material FKM	Series DGMC-2 Series	Valve Mount Type Subplate/Manifold

Product Questions & Answers (1)

Question by: Sheila C on May 27, 2025, 11:00 AM

Reckon this'd be alright for a plastic molding setup?

Answer by: Customer Support on May 28, 2025, 9:53 PM

This Vickers directional control valve is well-suited to plastics applications, along with pulp and paper, die casting, machine tools, and primary metal processing.
