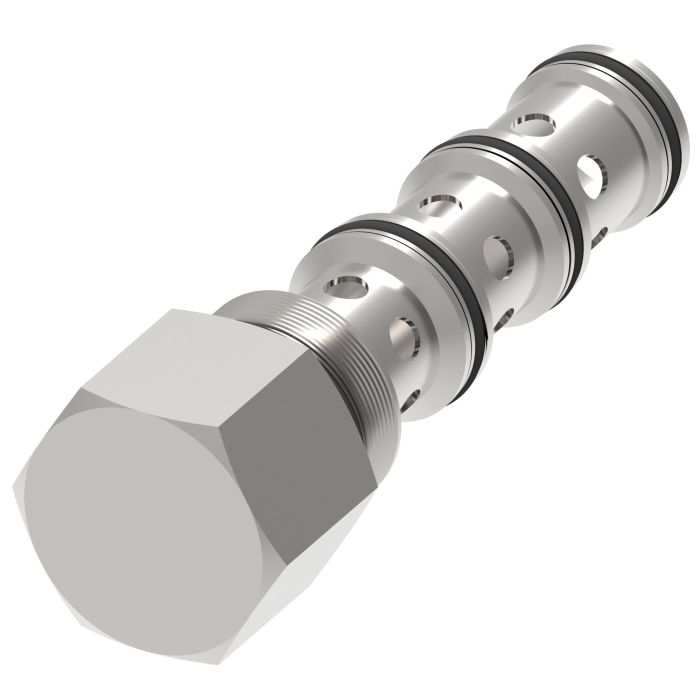

VICKERS DSV4 16 0 0 80

Description & Features

Designed for demanding mobile and industrial environments, the Vickers DSV4 16 0 0 80 is a spool-style directional control valve built to handle pressures up to 350 bar (5,000 psi) with flow rates reaching 265 L/min (70 USgpm). Rated at a working flow of 190 litres per minute, it delivers reliable flow management in a compact footprint that helps conserve installation space without sacrificing performance.

Well-suited for use in harvesters, refuse haulers, and a range of mobile and industrial hydraulic circuits, this DSV4-16 series valve from Vickers by Danfoss combines flexibility with an economical design. The spool-type construction provides consistent directional control across varied duty cycles, making it a practical choice where both space constraints and high-pressure capability are priorities.

SKU: 889315

Supplier Part Number (MPN): 889315

Specifications

Brand Vickers by Danfoss	Configuration Open Center	Dimensions 4.87 in L x 1.5 in W x 1.5 in H	Language English	Number of Ports/Ways 4-Port, 4-Way	Number of Positions 2	Port Type Cartridge	Seal Material Buna-N	Series DSV4-16 Series	Style Spool

Product Questions & Answers (1)

Question by: Kirk R on Jul 31, 2025, 6:04 AM

Will this valve hold up on a rig running around 5000 psi all day long?

Answer by: Customer Support on Aug 1, 2025, 5:22 PM

This Vickers DSV4-16 directional control valve is rated to handle pressures up to 350 bar, which is about 5,000 psi, so it should be suitable for your application.
