Brass Male Bspt X Hose Barb

Description & Features

Constructed from brass, this straight-configuration adapter connects a 3/8" male BSPT thread on one end to a 3/8" hose barb on the other, providing a reliable transition between threaded ports and hose assemblies in hydraulic and fluid systems. The male BSPT thread conforms to the British Standard Pipe Taper profile, making it compatible with corresponding female BSPT ports commonly found in industrial equipment.

The Brass Male Bspt X Hose Barb is manufactured by Adaptall, a brand recognized for its broad range of hydraulic and fluid fitting adapters. The hose barb end is sized to accept 3/8" hose, securing the connection through the barbed retention geometry when properly installed with compatible hose and clamps.

SKU: 8920T-06-06

Supplier Part Number (MPN): 8920T-06-06

Specifications

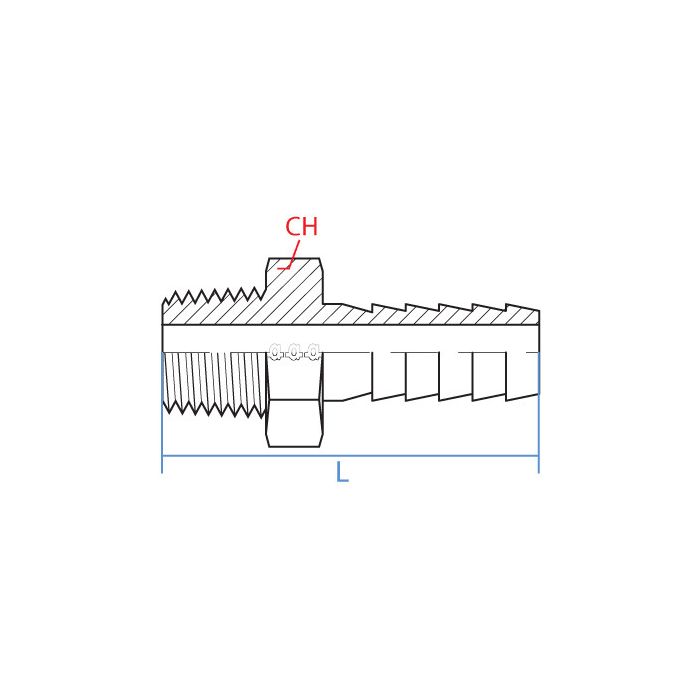

Connection Size 1 3/8 in	Connection Size 2 3/8 in	Connection Type Barbed, Male BSP	Connection Type 1 Male BSPT	Connection Type 2 Hose Barbed	Dimension Standards DIN EN 10226-1	Dimensions 54.5 mm L	Finish Nickel-Plated	Fitting Type Adapter	Material Brass	Material Construction Brass	Series 8920T Series	Thread Size 3/8-19

Product Questions & Answers (3)

Question by: Marvin G on Dec 22, 2025, 8:07 AM

got a female R 3/8 port on a piece of equipment, will this screw right in and let me run 3/8 hose off it?

Answer by: Customer Support on Dec 23, 2025, 12:11 PM

For tying a BSPT port into a hose line, this adapter gives you a 3/8 inch male BSPT thread on one end and a 3/8 inch hose barb on the other. The threaded side is R 3/8 - 19 and is meant to mate with a matching female BSPT port, then the barb end is sized for 3/8 inch hose.

Question by: Pete P on Apr 2, 2026, 6:50 PM

Got a piece of equipment with a female BSPT port on it, will this fitting thread right in without needing some kind of adapter in between?

Answer by: Customer Support on Apr 4, 2026, 4:41 PM

Male BSPT threads on this fitting match up with female BSPT ports, so yes, it'll go straight in. The thread profile follows the British Standard Pipe Taper spec, which is what you'll find on a lot of industrial equipment, especially older or imported machinery. Just make sure your port is actually BSPT and not BSP parallel, since those look similar but aren't the same thread form.

Question by: Duane M on Sep 5, 2025, 12:47 PM

Will this here fitting hold up okay for hooking up an air compressor to a tank?

Answer by: Customer Support on Sep 7, 2025, 6:41 AM

This fitting is constructed from brass, which provides good durability and corrosion resistance in pneumatic systems. As long as the pressure and operating environment are within the capabilities of standard brass fittings, it should work fine for that application.
