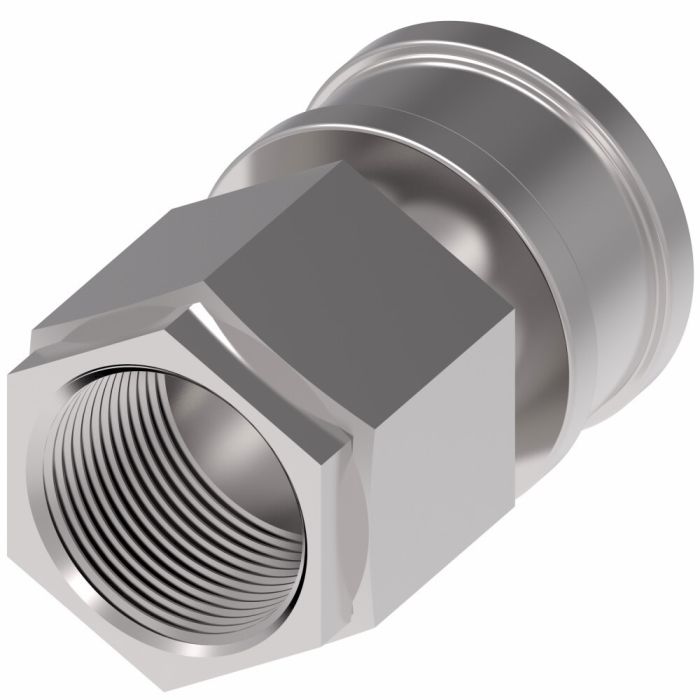

Designed for versatility across industries, the Danfoss / Eaton Cplng HK Series Quick Disconnect Couplings Socket excels in applications ranging from agriculture to aerospace. With a robust carbon steel construction, this coupling ensures durability and reliability in demanding environments. The push-to-connect and NPTF end types facilitate quick and tool-free connections, making it ideal for rapid deployment in fluid transfer and hydraulic systems. Certified to ISO 7241-1 Series B, it meets rigorous international standards, ensuring compatibility and performance across various sectors.
Capable of handling flow rates up to 50 gallons per minute, this female half coupling features a ball lock internal connection type, providing secure and leak-free operation. The EPDM seal material enhances compatibility with a wide range of fluids, further broadening its application scope. With no safety locking mechanism, the design simplifies operation while maintaining high safety standards. Suitable for use in challenging conditions, it functions effectively in temperatures as low as -65°F, making it a dependable choice for diverse industrial requirements.
SKU: 8HP36192
Supplier Part Number (MPN): 8HP36192
|
Alternate Part Numbers
MINO-00015X08260
|
Application
Agriculture, Hydraulic Tool, General Industry, Construction, Fluid Transfer, Transportation, Military, Law Enforcement/Rescue, Chemical, Oil and Gas, Consumer Products, HVAC, Food and Beverage, Trucks, Aerospace, Medical
|
Certifications
ISO 7241-1 Series B
|
Brand
Danfoss Power Solutions (II LLC Aeroquip)
|
Brand
Aeroquip
|
Pack Size
1.00
|
UOM
EA
|
End Gender 1
13553
|
End Gender 2
13555
|
End Size 2
1
|
End Type 1
Push to Connect
|
End Type 2
NPTF
|
Features
Quick connect and disconnect|No need for special tools|Exceeds ISO 16028 operating pressures
|
Flow Rate1
50 gallons per minute
|
ICC
Quick Disconnect Couplings
|
Internal Connection Type
Ball Lock
|
Item Type
Female Half
|
Language
English
|
Minimum Working Temperature
-65
|
Net Pack Quantity Units
EA
|
NMFC
50
|
Port Size
1
|
Product Material
Carbon Steel
|
Product Width
2.61
|
Safety locking Mechanism
None
|
Seal Material
EPDM
|
Sub Brand
Hansen
|
Supplier Part Number
8HP36192
|
Valve Type
2 way
|
Product Weight
2.31 lbs
|
