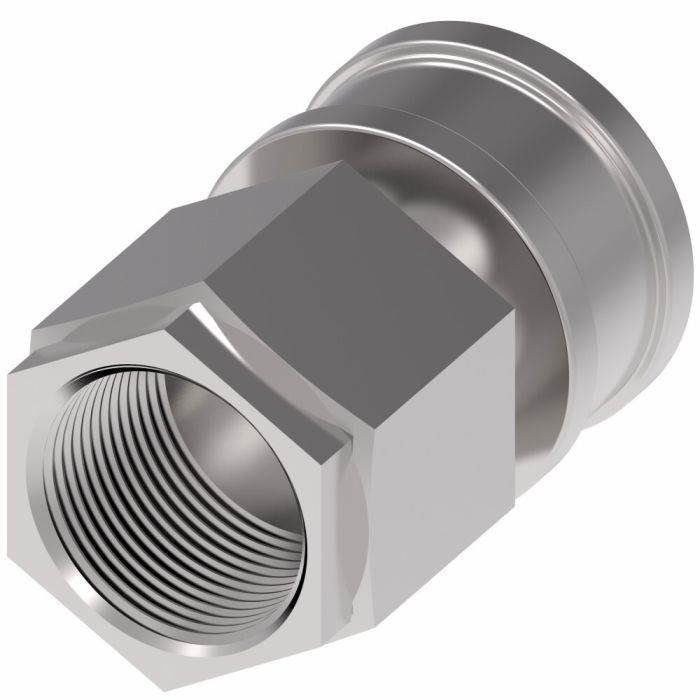

This Danfoss / Eaton Cplng HK Series quick disconnect coupling socket is a female half designed for applications in agriculture, construction, fluid transfer, transportation, and more.
Constructed from carbon steel with Buna-N seals, this coupling features a push-to-connect end type and a 1" NPTF end type. It offers quick connect and disconnect functionality without the need for special tools. This 2-way valve coupling exceeds ISO 16028 operating pressures and delivers a flow rate of 50 gallons per minute. It conforms to ISO 7241-1 Series B standards and is suitable for a minimum working temperature of -40 degrees.
SKU: 8HP36NV
Supplier Part Number (MPN): 8HP36NV
|
Alternate Part Numbers
MINO-00015X08265
|
Application
Agriculture, Hydraulic Tool, General Industry, Construction, Fluid Transfer, Transportation, Military, Law Enforcement/Rescue, Chemical, Oil and Gas, Consumer Products, HVAC, Food and Beverage, Trucks, Aerospace, Medical
|
Certifications
ISO 7241-1 Series B
|
Brand
Danfoss Power Solutions (II LLC Aeroquip)
|
Brand
Aeroquip
|
Pack Size
1.00
|
UOM
EA
|
End Gender 1
13553
|
End Gender 2
13555
|
End Size 2
1
|
End Type 1
Push to Connect
|
End Type 2
NPTF
|
Features
Quick connect and disconnect|No need for special tools|Exceeds ISO 16028 operating pressures
|
Flow Rate1
50 gallons per minute
|
ICC
Quick Disconnect Couplings
|
Internal Connection Type
Ball Lock
|
Item Type
Female Half
|
Language
English
|
Minimum Working Temperature
-40
|
Net Pack Quantity Units
EA
|
NMFC
50
|
Port Size
1
|
Product Material
Carbon Steel
|
Product Width
2.61
|
Safety locking Mechanism
None
|
Seal Material
Buna-N
|
Sub Brand
Hansen
|
Supplier Part Number
8HP36NV
|
Valve Type
2 way
|
Product Weight
1.96 lbs
|
