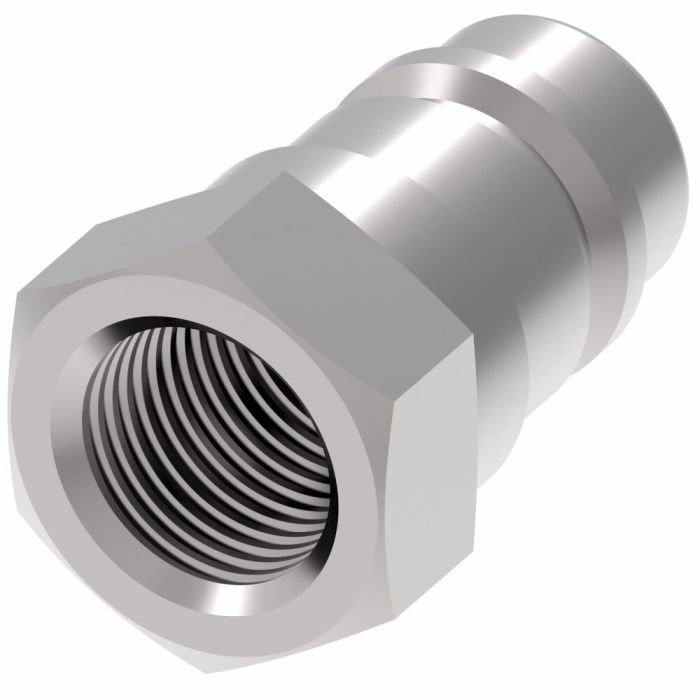

Designed for oil and gas applications, the Danfoss / Eaton Hansen Cplng is a male half plug from the Hansen HKFR Series of quick disconnect couplings. Built from carbon steel with Buna-N seals, it handles a flow rate of up to 25 gallons per minute and operates down to -40°F minimum working temperature. The 2-way valve design incorporates a ball lock internal connection mechanism and a sleeve lock safety feature for secure, reliable engagement.
Connection is push-to-connect on the male end, with a 1-inch NPTF female port on the opposite end, no special tools required for coupling or decoupling. The unit meets ISO 7241-1 Series B standards and carries Lloyd's Register Certification, with operating pressures that exceed ISO 16028 requirements. Manufactured under the Aeroquip / Hansen sub-brand, this coupling is suited for demanding fluid transfer service in industrial and oil and gas environments.
SKU: 8KFR36
Supplier Part Number (MPN): 8KFR36
|
Alternate Part Numbers
MINO-00015X08269
|
Application
Oil and Gas
|
Certifications
ISO 7241-1 Series B|Lloyd's Register Certification
|
Brand
Danfoss Power Solutions (II LLC Aeroquip)
|
Brand
Aeroquip
|
Pack Size
1.00
|
UOM
EA
|
End Gender 1
13554
|
End Gender 2
13555
|
End Size 2
1
|
End Type 1
Push to Connect
|
End Type 2
NPTF
|
Features
Quick connect and disconnect|No need for special tools|Exceeds ISO 16028 operating pressures
|
Flow Rate1
25 gallons per minute
|
ICC
Quick Disconnect Couplings
|
Internal Connection Type
Ball Lock
|
Item Type
Male Half
|
Language
English
|
Minimum Working Temperature
-40
|
Net Pack Quantity Units
EA
|
Product Material
Carbon Steel
|
Product Width
1.88
|
Safety locking Mechanism
Sleeve lock
|
Seal Material
Buna-N
|
Sub Brand
Hansen
|
Supplier Part Number
8KFR36
|
Valve Type
2 way
|
Product Weight
0.76 lbs
|
