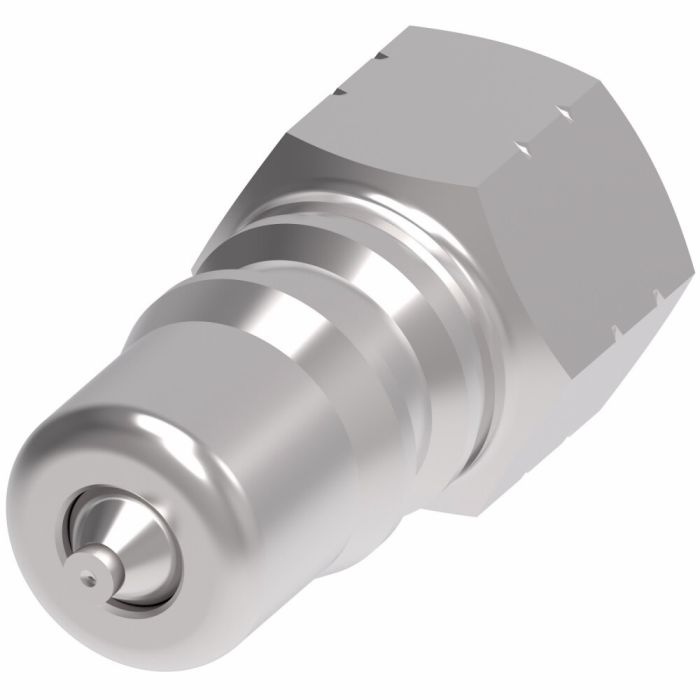

Rated for flows up to 50 gallons per minute, this carbon steel male plug half is built for demanding hydraulic service across agriculture, construction, oil and gas, transportation, and a broad range of industrial applications. The Danfoss / Eaton Male/Plug Half belongs to the Hansen HK Series and connects via a push-to-connect interface with a 1" NPTF port on the female end, secured by a ball lock internal connection mechanism.
Carrying ISO 7241-1 Series B certification and exceeding ISO 16028 operating pressures, this coupling half is suited for high-pressure fluid transfer without the need for special tools. FKM seals provide reliable fluid compatibility across a wide range of media, and the 2-way valve design supports controlled flow management. With a minimum working temperature of -15°F, the unit is appropriate for cold-weather service environments including military and rescue applications. No safety locking mechanism is incorporated, making it compatible with standard HK Series female halves where locking is not required.
SKU: 8KP36143
Supplier Part Number (MPN): 8KP36143
|
Application
Agriculture, Hydraulic Tool, General Industry, Construction, Fluid Transfer, Transportation, Military, Law Enforcement/Rescue, Chemical, Oil and Gas, Consumer Products, HVAC, Food and Beverage, Trucks, Aerospace, Medical
|
Certifications
ISO 7241-1 Series B
|
Brand
Danfoss Power Solutions (II LLC Aeroquip)
|
Brand
Aeroquip
|
Pack Size
1.00
|
UOM
EA
|
End Gender 1
13554
|
End Gender 2
13555
|
End Size 2
1
|
End Type 1
Push to Connect
|
End Type 2
NPTF
|
Features
Quick connect and disconnect|No need for special tools|Exceeds ISO 16028 operating pressures
|
Flow Rate1
50 gallons per minute
|
ICC
Quick Disconnect Couplings
|
Internal Connection Type
Ball Lock
|
Item Type
Male Half
|
Language
English
|
Minimum Working Temperature
-15
|
Net Pack Quantity Units
EA
|
NMFC
50
|
Port Size
1
|
Product Material
Carbon Steel
|
Product Width
1.88
|
Safety locking Mechanism
None
|
Seal Material
FKM
|
Sub Brand
Hansen
|
Supplier Part Number
8KP36143
|
Valve Type
2 way
|
Product Weight
0.74 lbs
|
