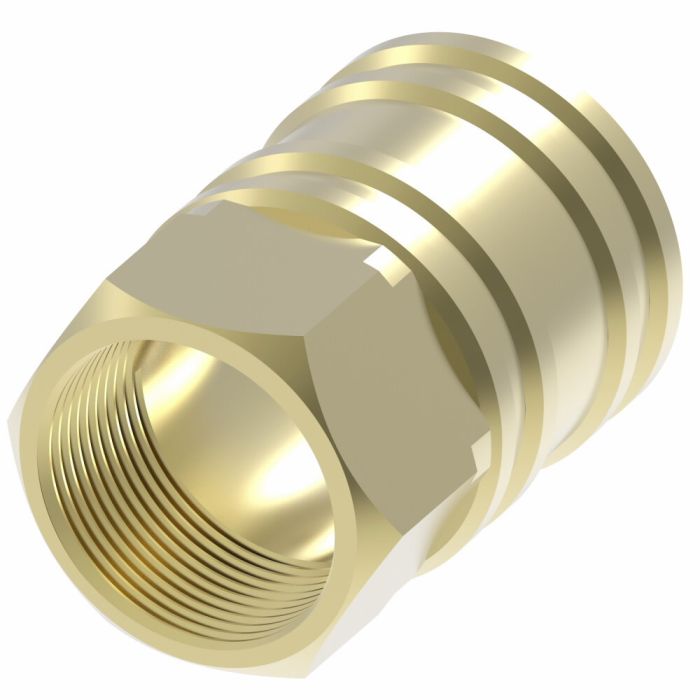

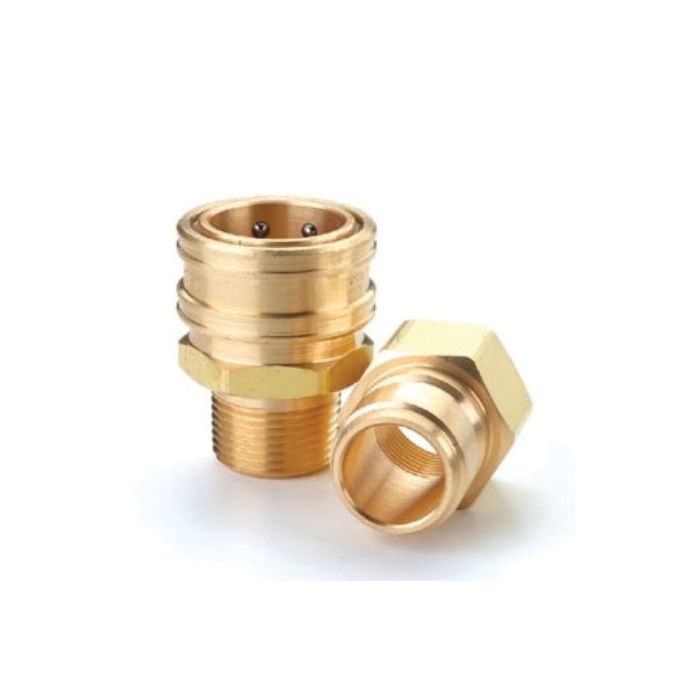

Designed for demanding fluid transfer applications, the Danfoss / Eaton Cplng ST Series is a 1-inch female half quick disconnect coupling socket constructed from brass with a Buna-N seal. The ball lock internal connection mechanism and straight-through valve design support a flow rate of up to 140 gallons per minute, making it well-suited for high-volume transfer environments.
Push-to-connect on one end and BSPP-threaded on the other, this coupling connects and disconnects without special tools. It exceeds ISO 16028 operating pressure standards and carries a minimum working temperature rating of -40°F, supporting use across a broad range of industrial conditions. Typical applications include chemical handling, food and beverage processing, injection molding, marine, medical, pressure washing, and steam cleaning environments. The coupling is manufactured under the Hansen sub-brand at the Van Wert, Ohio facility.
SKU: 8S36BS
Supplier Part Number (MPN): 8S36BS
|
Alternate Part Numbers
MINO-00015X08295
|
Application
Fluid Transfer, Chemical, Food and Beverage, Injection Molding, Marine, Medical, Pressure Washing, Steam Cleaning
|
Brand
Danfoss Power Solutions (II LLC Aeroquip)
|
Brand
Aeroquip
|
Pack Size
1.00
|
UOM
EA
|
End Gender 1
13553
|
End Gender 2
13555
|
End Size 1
1
|
End Size 2
1
|
End Type 1
Push to Connect
|
End Type 2
BSPP
|
Features
Quick connect and disconnect|No need for special tools|Exceeds ISO 16028 operating pressures
|
Flow Rate1
140 gallons per minute
|
ICC
Quick Disconnect Couplings
|
Internal Connection Type
Ball Lock
|
Item Type
Female Half
|
Language
English
|
Minimum Working Temperature
-40
|
Net Pack Quantity Units
EA
|
Port Size
1
|
Product Material
Brass
|
Product Width
2.03
|
Seal Material
Buna-N
|
Sub Brand
Hansen
|
Supplier Part Number
8S36BS
|
Valve Type
Straight Thru
|
Product Weight
0.96 lbs
|
