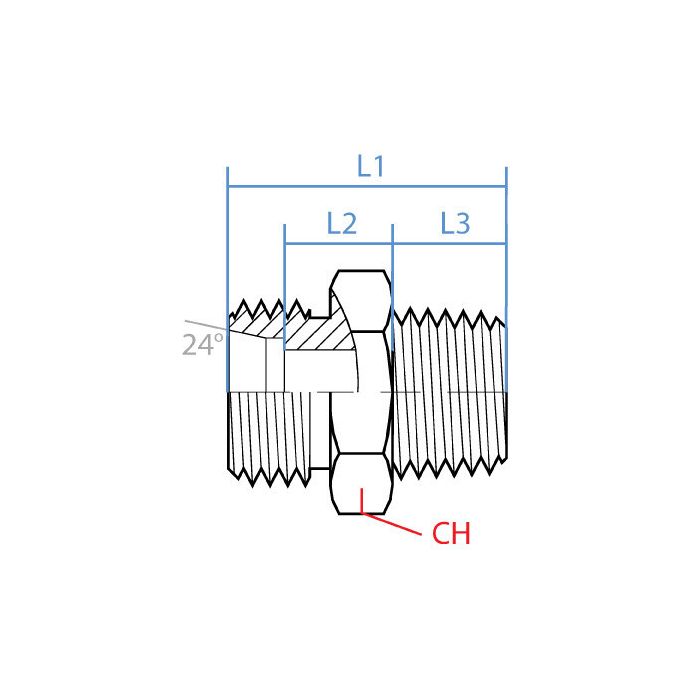

main product photo

Din X Male Npt Complete

Ask A Question

Description & Features

Constructed from durable steel, this hydraulic adapter features a straight design that ensures reliable performance in industrial settings. The Din X Male Npt Complete adapter is engineered to facilitate seamless connectivity between metric and NPT threads, enhancing the versatility of your hydraulic systems.

With a precision-machined M12 x 1.0 DIN tube connection on one side and a 1/8"-27 NPTF male connection on the other, this adapter accommodates various application needs. Its compact dimensions, including a width of 12mm and lengths of 24mm, 8mm, and 10mm, contribute to its ease of integration into tight configurations where space is limited.

This adapter is part of the Adaptall brand, known for its high-quality hydraulic components. Its robust construction and precise threading make it ideal for demanding environments, ensuring leak-free connections and reliable performance under pressure.

SKU: 5007LL-08-02C

Supplier Part Number (MPN): 5007LL-08-02C

Specifications

Brand
adapt-all
Connection Size 1
LL08
Connection Size 2
1/8 in
Connection Type
Male Metric, MNPT
Connection Type 1
Male Metric DIN 24 deg Tube
Connection Type 2
Male NPT
Dimension Standards
ANSI B1.20.3, DIN 2353
Dimensions
24 mm L
Finish
Zinc-Plated
Fitting Type
Adapter
Hex Size
12 mm
Material
Steel
Material Construction
Carbon Steel
Series
5007 Series
Thread Size
M12x1 x 1/8-27

Similar Products

Model Number Connection Size 1 Thread Size Hex Size Price Action
Din X Male Npt Complete

5007LL-04-02C

LL04

M8x1 x 1/8-27

11 mm

Din X Male Npt Complete

5007LL-06-02C

LL06

1/8-27 x M10x1

11 mm

Product Questions & Answers (3)

Question by: Tammy W on May 1, 2025, 2:21 PM
what's the thread size on the DIN side of this adapter, and does it connect up to standard metric tube fittings?
Answer by: Customer Support on May 3, 2025, 6:46 AM
The DIN side runs M12 x 1.0, which is a common metric tube thread size used across a wide range of hydraulic components. It connects as a male fitting, so you'd be mating it to a female DIN tube port on the other end. The NPT side is a 1/8"-27 NPTF male, so both ends are male threads. Keep that in mind when planning your port or hose assembly setup.
Question by: Donna G on Dec 29, 2025, 3:23 PM
Will this fit on my M12 hydraulic line? Just want to make sure before I order.
Answer by: Customer Support on Dec 31, 2025, 6:55 AM
Yes, this adapter features a M12 x 1.0 DIN tube connection, so it should fit your hydraulic line as long as the threads match up. Also has a 1/8"-27 NPTF male connection on the other side.
Question by: Lyle F on Sep 22, 2025, 12:07 PM
got a metric DIN tube end thats M12 x 1.0, will this adapter get me over to a 1/8-27 NPTF male?
Answer by: Customer Support on Sep 24, 2025, 6:30 AM
Built for that exact thread changeover, it has an M12 x 1.0 DIN tube connection on one side and a 1/8-27 NPTF male on the other, all in a straight steel body.
