90*Din Bulkhead Union Complete

Description & Features

Configured as a 90° elbow in steel, this Adaptall 90° Din Bulkhead Union Complete provides a right-angle bulkhead connection using DIN tube fittings on both sides. Both ends carry an M22 x 1.5 male thread at L15 sizing, making this a symmetrical union suited for routing hydraulic lines through panels or enclosures at a perpendicular angle.

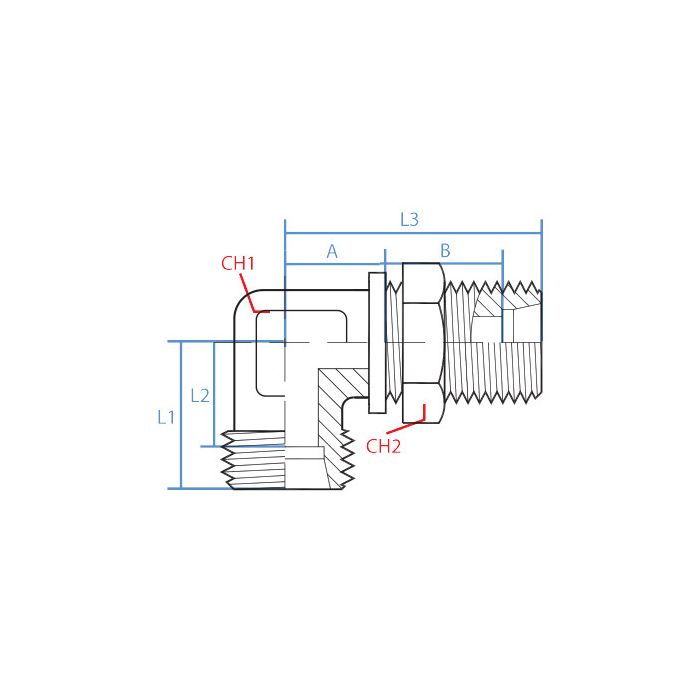

Key dimensions include a 28mm L1 length, 21mm L2 length, and 61mm overall L3 length, with across-flat widths of 19mm and 30mm on the two connection ends. The all-steel construction provides the durability expected in demanding hydraulic circuit applications.

SKU: 5042L-15C

Supplier Part Number (MPN): 5042L-15C

Specifications

A Misc 23mm	B Misc 31mm	CH1 Width 19mm	CH2 Width 30mm	L1 Length 28mm	L2 Length 21mm	L3 Length 61mm	Adaptall Material Steel	Adaptall Shape 90° Elbow	Side 1 Callout M22 X 1.5	Side 1 Gender M	Side 1 Size L15	Side 1 Type Din Tube	Side 2 Callout M22 X 1.5	Side 2 Gender M	Side 2 Size L15	Side 2 Type Din Tube	Brand Adaptall America	Brand Adaptall	Pack Size 1.00	UOM EA	Supplier Part Number 5042L-15C	Product Weight 0.42 lbs
