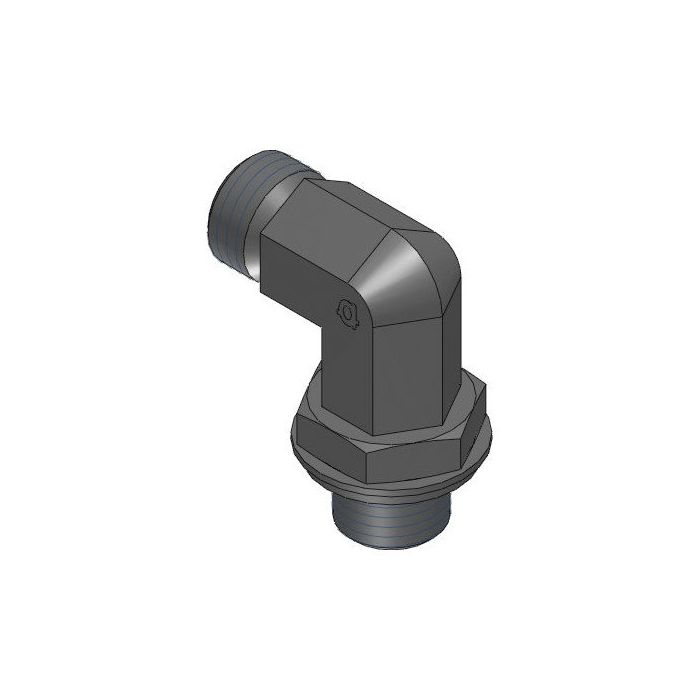

90* Din X Male Bspp Adj Elbow

Ask A Question

Description & Features

Designed for reliable performance in industrial hydraulic systems, the 90° Elbow Adapter offers a precise connection between DIN tube and BSPP male threads. Crafted from high-quality steel, this adapter ensures durability and resistance to wear in demanding environments. The connection features a 14mm width on the DIN tube side with an M14 x 1.5 thread size, while the BSPP side includes a 1/4" G 1/4 - 19 male thread with a 19mm width. This adapter is an ideal choice for applications requiring a secure and adjustable 90-degree angle connection.

With dimensions of 23mm (L1 length), 16mm (L2 length), and 32mm (L3 length), this compact yet robust fitting from Adaptall is engineered to facilitate optimal fluid transfer in hydraulic circuits. Its versatile design accommodates various industrial applications, ensuring compatibility and ease of integration into existing systems.

SKU: 5059S-06-04

Supplier Part Number (MPN): 5059S-06-04

Specifications

Brand
adapt-all
Connection Size 1
6 mm
Connection Size 2
1/4 in
Connection Type
Male BSP, Male Metric
Connection Type 1
Male Metric DIN 24 deg Tube
Connection Type 2
Male BSPP
Dimension Standards
BS 5200, DIN 2353
Finish
Zinc-Plated
Fitting Type
90 deg Elbow
Material
Steel
Material Construction
Carbon Steel
Series
5059 Series
Thread Size
M14x1.5 x 1/4-19

Product Questions & Answers (3)

Question by: Travis T on Apr 16, 2025, 2:16 PM
Wondering if this elbow fitting will work to connect a DIN tube to a BSPP thread?
Answer by: Customer Support on Apr 18, 2025, 1:14 PM
Yes, this 90° elbow adapter is designed to provide a secure connection specifically between a DIN tube and a BSPP male thread.
Question by: Lance P on Nov 7, 2025, 1:19 PM
Got a hydraulic line runnin DIN tube on one end and BSPP male on the other -- does this fitting bridge that gap or do I need somethin in between?
Answer by: Customer Support on Nov 9, 2025, 6:44 AM
That's exactly what this fitting handles. One side connects to a 14mm DIN tube with an M14 x 1.5 thread, and the other side is a 1/4" BSPP male thread with a 19mm width. No additional adapters needed to bridge those two standards.
Question by: Howard T on Aug 14, 2025, 8:58 AM
trying to swap an old elbow out, is this one the kind that goes from M14 x 1.5 DIN tube over to a 1/4 G BSPP male?
Answer by: Customer Support on Aug 15, 2025, 8:54 PM
For that connection, it matches. Side 1 is a DIN tube male with an M14 x 1.5 callout, and side 2 is a BSPP male threaded end called out as G 1/4 - 19 (1/4 inch).
