90* Din X Male Metric Din

Ask A Question

Description & Features

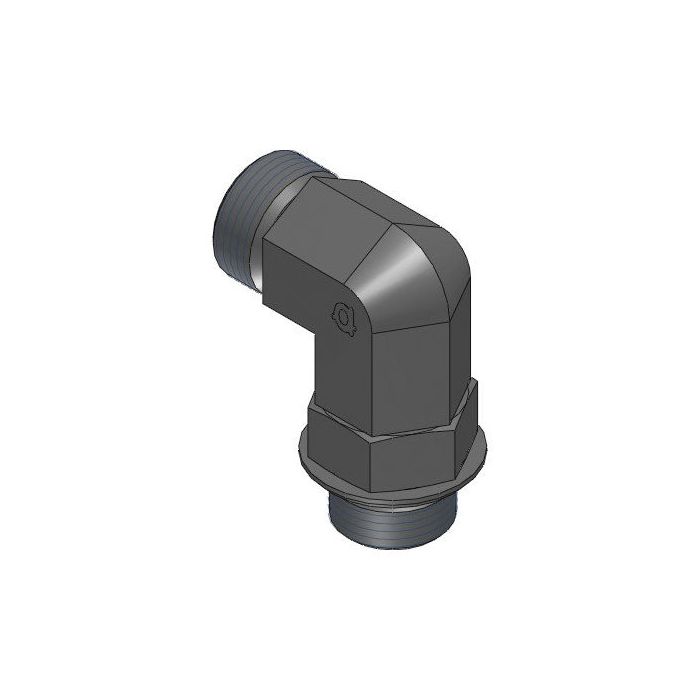

Designed for precision and durability, the 90° Elbow Adapter is crafted from robust steel, ensuring long-lasting performance in demanding industrial environments. This fitting features a unique dual-connection design, with a Din Tube connection on Side 1, sized at M20 X 1.5, and a Metric connection on Side 2, sized at M18 X 1.5. Its compact dimensions include a length of 29mm and a width of 24mm, making it an ideal choice for tight spaces where reliable connections are essential.

The 90° Din X Male Metric Din adapter is engineered by Adaptall to meet the rigorous standards of hydraulic and industrial systems. With a side 1 size of S12 and side 2 size of 18mm, this component is designed to seamlessly integrate into existing setups, ensuring compatibility and ease of installation. Its angled shape facilitates smooth fluid flow, minimizing resistance and optimizing system efficiency.

SKU: 5069S-12-18

Supplier Part Number (MPN): 5069S-12-18

Specifications

Brand
adapt-all
Connection Size 1
L12
Connection Size 2
18 mm
Connection Type
Male Metric
Connection Type 1
Male DIN Tube
Connection Type 2
Male Metric
Dimension Standards
DIN 2353, DIN 7631
Finish
Zinc-Plated
Fitting Type
90 deg Elbow
Material
Steel
Material Construction
Carbon Steel
Series
5069 Series
Thread Size
M20x1.5 x M18x1.5

Product Questions & Answers (2)

Question by: Freddie M on Apr 6, 2026, 6:42 AM
got a tight spot on a hydraulic line, is this the 90 degree elbow that goes from M20 x 1.5 din tube over to M18 x 1.5 metric male?
Answer by: Customer Support on Apr 8, 2026, 6:32 AM
For that setup, it matches those thread callouts. Side 1 is a DIN tube connection with an M20 x 1.5 male end (size S12), and side 2 is a metric M18 x 1.5 male end (18 mm). The 90° elbow shape is meant to help route the line in close quarters.
Question by: Eddie H on Jul 17, 2025, 5:43 PM
what's the thread size on both ends of this fitting? got a M18 line on one side and need to confirm the other before I order
Answer by: Customer Support on Jul 19, 2025, 1:17 PM
Side one runs M20 x 1.5 and side two is M18 x 1.5, so if you've got an M18 line on one end, that matches up with side two. The other end would need to connect to an M20 x 1.5 DIN tube port. Both sides are male, so keep that in mind when checking what you're mating to on each connection point.
