90* Din X Male Npt Complete

Description & Features

Designed for transitioning between DIN tube and NPT threaded connections, the 90° Din X Male Npt Complete fitting from Adaptall provides a reliable 90-degree angle configuration suited to hydraulic line routing where straight connections are not practical. Side one features an M16 x 1.5 male DIN tube end in a size L10 configuration, while side two terminates in a 1/4"-18 NPTF male thread, making it compatible with standard NPT-ported components and instrumentation.

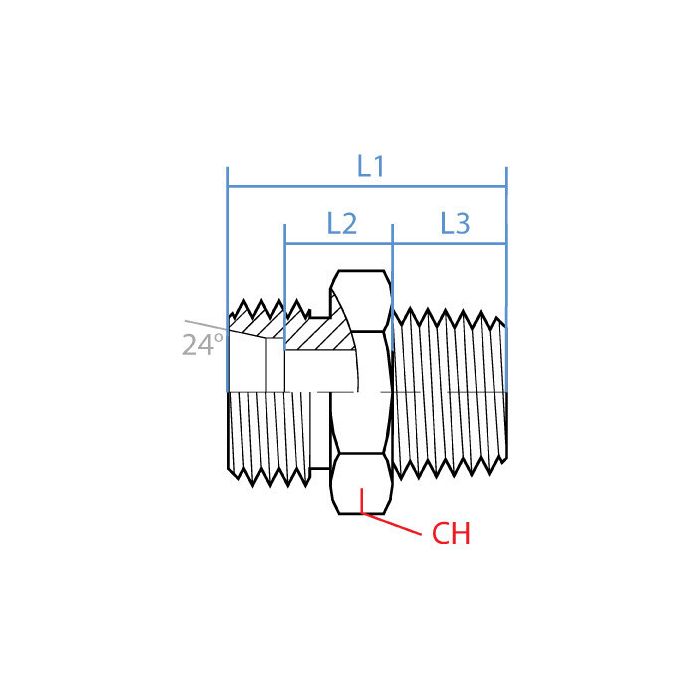

Key dimensions include a 17mm wrench width, an L1 length of 31mm, an L2 length of 9mm, and an L3 length of 15mm. As part of the Adaptall modular fitting system, this component is intended for use in hydraulic assemblies where field configuration and cross-connection between thread standards is required.

SKU: 5070LL-10-04C

Supplier Part Number (MPN): 5070LL-10-04C

Specifications

CH Width 17mm	L1 Length 31mm	L2 Length 9mm	L3 Length 15mm	Adaptall Shape Straight	Side 1 Callout M16 X 1.5	Side 1 Gender M	Side 1 Size L10	Side 1 Type Din Tube	Side 2 Callout 1/4 - 18 NPTF	Side 2 Gender M	Side 2 Size 1/4"	Side 2 Type Npt	Brand Adaptall America	Brand Adaptall	Pack Size 1.00	UOM EA	Supplier Part Number 5070LL-10-04C	Product Weight 0.10 lbs

Product Questions & Answers (1)

Question by: Judy B on Jul 29, 2025, 9:01 PM

Just want to make sure, this here fitting will go from a DIN tube to a regular NPT thread right?

Answer by: Customer Support on Jul 31, 2025, 8:01 PM

That's correct, this fitting is designed to adapt between a DIN tube connection and a standard NPT threaded port. It has an M16 x 1.5 male DIN tube end and a 1/4"-18 NPTF male thread.
