90* Din X Male Npt

Description & Features

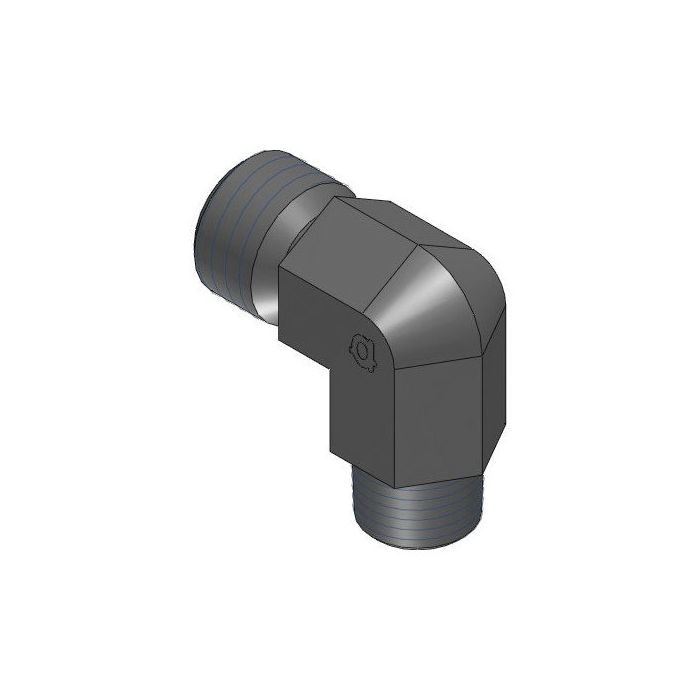

Constructed from steel, this 90° elbow adapter connects a DIN tube fitting on one end to a male NPT thread on the other, making it a practical solution for routing hydraulic lines at a right angle where two different thread standards meet. The DIN side carries an M12 x 1.5 male thread with an L06 tube size, while the NPT side is a 1/4 in. male thread sized at 1/4–18 NPTF.

The 90* Din X Male Npt is an Adaptall product, suited for hydraulic circuit assemblies where a compact directional change and a thread-standard transition are required in a single fitting. Steel construction provides the durability expected in demanding industrial hydraulic environments.

SKU: 5070L-06-04

Supplier Part Number (MPN): 5070L-06-04

Specifications

Brand adapt-all	Connection Size 1 6 mm	Connection Size 2 1/4 in	Connection Type Male Metric, MNPT	Connection Type 1 Male DIN Tube	Connection Type 2 Male NPT	Dimension Standards ANSI B1.20.3, DIN 2353	Finish Zinc-Plated	Fitting Type 90 deg Elbow	Hex Size 12 mm	Material Steel	Material Construction Carbon Steel	Series 5070 Series	Thread Size M12x1.5 x 1/4-18

Product Questions & Answers (1)

Question by: Bobby S on Jan 30, 2026, 12:45 PM

trying to swap out a fitting, is this the one that’s DIN M12 x 1.5 on one end and 1/4-18 NPTF male on the other?

Answer by: Customer Support on Jan 31, 2026, 1:51 PM

For fit confirmation, the DIN side is an M12 x 1.5 male thread with an L06 tube size, and the other end is a 1/4 inch male thread at 1/4 to 18 NPTF.
