90* Male Bspp X Male Bspt

Description & Features

A 90-degree elbow configuration in steel, this fitting connects a 3/4" Male BSPP thread (G 3/4 - 14) on one end to a 3/4" Male BSPT thread (R 3/4 - 14) on the other, making it well-suited for hydraulic circuits that require a transition between parallel and tapered British thread standards at a right angle. Both sides share the same nominal size, keeping flow paths consistent through the turn.

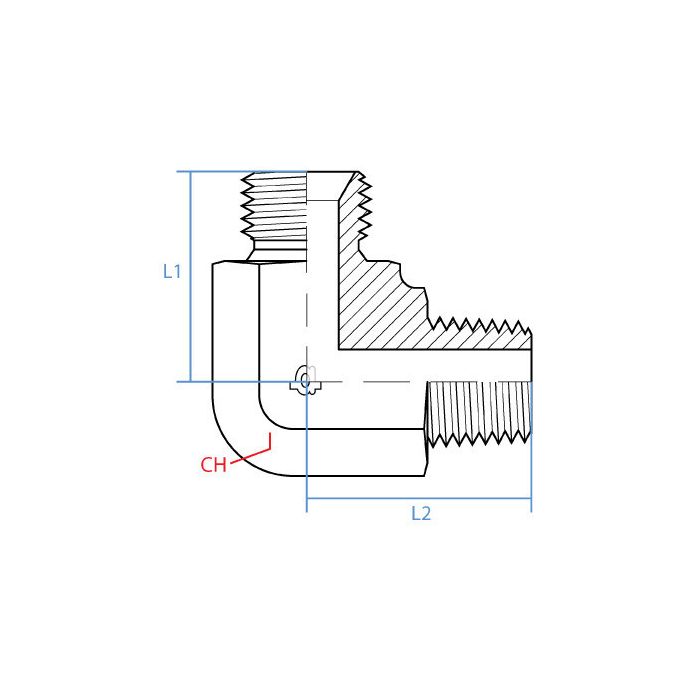

The 90* Male BSPP x Male BSPT is an Adaptall fitting, manufactured in steel with a 27mm wrench width. Overall assembled dimensions include an L1 length of 39mm and an L2 length of 40mm, supporting compact routing in tight installations where a straight adapter is not practical.

SKU: 9057-12-12

Supplier Part Number (MPN): 9057-12-12

Specifications

CH Width 27mm	L1 Length 39mm	L2 Length 40mm	Adaptall Material Steel	Adaptall Shape 90° Elbow	Side 1 Callout G 3/4 - 14	Side 1 Gender M	Side 1 Size 3/4"	Side 1 Type Bspp	Side 2 Callout R 3/4 - 14	Side 2 Gender M	Side 2 Size 3/4"	Side 2 Type Bspt	Brand Adaptall America	Brand Adaptall	Pack Size 1.00	UOM EA	Supplier Part Number 9057-12-12	Product Weight 0.50 lbs

Product Questions & Answers (2)

Question by: Tommy C on Aug 5, 2025, 6:25 AM

got a port that’s G 3/4-14 on one side and R 3/4-14 on the other. is this the elbow that’ll bridge those two?

Answer by: Customer Support on Aug 7, 2025, 6:49 AM

For a G 3/4 - 14 male on one end and an R 3/4 - 14 male on the other, this Adaptall 90 degree steel elbow is the right match. It is built specifically to transition from BSPP (parallel) to BSPT (tapered) while keeping the nominal 3/4 inch size on both sides.

Question by: Travis G on Aug 8, 2025, 8:36 AM

fitting's only 39 to 40mm long overall, that gonna be enough clearance to get a wrench on it proper when I'm torquing it down in a tight spot?

Answer by: Customer Support on Aug 10, 2025, 6:28 AM

At 27mm across the wrench flats, you've got enough to work with for standard tooling, but the short body does mean you'll want to think through access before you commit to a routing position. The 39mm and 40mm leg lengths are compact by design, so if you're working in a spot where the wrench has to swing even a quarter turn, it's worth dry-fitting first and confirming you can get full engagement on both ends before final installation.
