90* Male Jic X Female Bspp

Description & Features

This 90° elbow Adaptall fitting features a male JIC (9/16 - 18 UNF) connection on one side and a female BSPP (G 3/8 - 19) connection on the other, both with a 3/8" size.

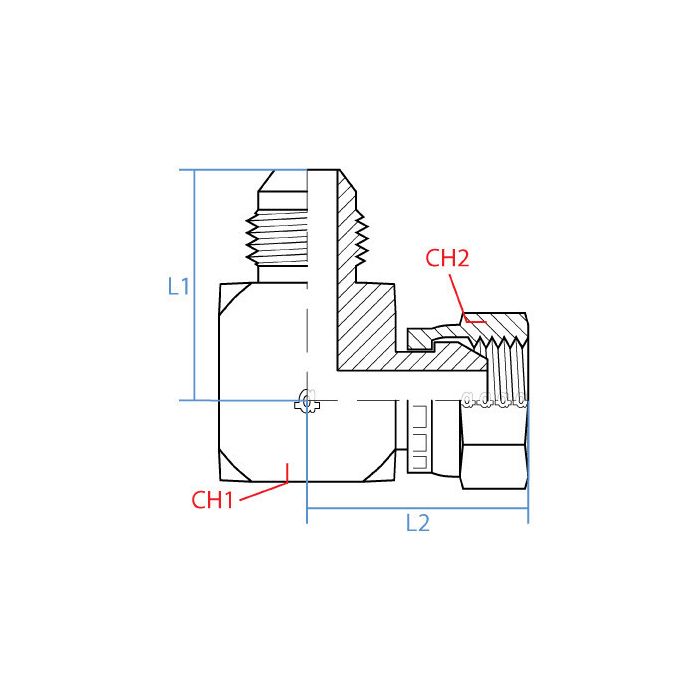

Constructed of durable steel, this 90* Male JIC X Female BSPP adapter has a Side 1 wrench flat of 19mm and a Side 2 wrench flat of 22mm. The L1 length is 30mm, and the L2 length is 33mm.

SKU: 9056-06-06

Supplier Part Number (MPN): 9056-06-06

Specifications

Connection Size 1 9/16 in	Connection Size 2 3/8 in	Connection Type Female BSP Swivel, Male JIC	Connection Type 1 Male JIC	Connection Type 2 Female BSPP Swivel	Dimension Standards BS 5200, ISO 1179, ISO 8434-2, ISO 8434-6, SAE J514	Finish Zinc-Plated	Fitting Type 90 deg Elbow	Material Steel	Material Construction Carbon Steel	Series 9056 Series	Thread Size 9/16-18 x 3/8-19

Product Questions & Answers (2)

Question by: Patty G on Apr 26, 2025, 4:26 PM

fitting's got a male JIC on one end and female BSPP on the other -- that 90 degree angle, is that gonna let me change direction right at the connection point or do I still need a separate elbow somewhere upstream?

Answer by: Customer Support on Apr 28, 2025, 6:58 AM

Right at the connection point is exactly where the direction change happens. The 90 degree elbow geometry is built into the fitting itself, so you get the angle transition and the thread conversion in one piece. No separate elbow needed. The male JIC side is 9/16-18 UNF and the female BSPP side is G 3/8-19, both at 3/8 inch size, so as long as those threads match up on your lines you are good to go in one shot.

Question by: Bonnie W on Jun 1, 2025, 5:50 PM

What's the wrench size needed for each side of this fitting?

Answer by: Customer Support on Jun 2, 2025, 9:47 PM

You'll need a 19mm wrench for Side 1 and a 22mm wrench for Side 2.
